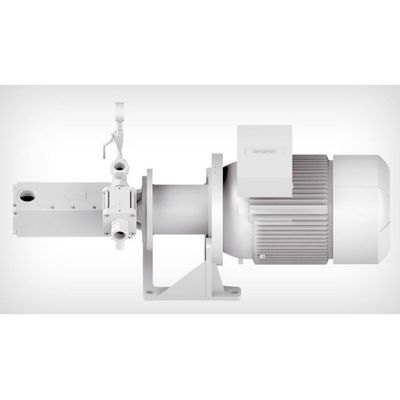

KNOLLModel KTSV -Screw Spindle Pumps

SHARE

In 2003, the idea was born to use screw pumps from the KTS series in a modified form in new markets. The further development, called the KTSV screw spindle pump, solves tasks that are revolutionary in process engineering. It is used for a wide variety of products with viscosities from 0.5 to 2,000,000 mPas. KNOLL engineers adapt individual solutions for these screw spindle pumps precisely to customer requirements. The KTSV enables significant cost savings by simplifying the system and minimizing downtime and waste.

Most popular related searches
  • Suitable for low to high viscosity, shear-sensitive and/or abrasive media
  • Experience values up to 2,000,000 mPas
  • A pressure of up to 200 bar is available
  • Low pulsation due to large number of delivery chambers
  • Depending on the pumped media, different materials are available
  • Different drive variants possible

  • Suitable for highly viscous, shear-sensitive and/or abrasive media
  • Experience values up to 2,000,000 mPas
  • A pressure of up to 200 bar is available
  • Low pulsation due to large number of delivery chambers
  • Volumetric dosage; therefore suitable for emptying and dosing in one organ
  • Depending on the pumped media, different materials are available
  • Special suction housing for follower plate connection
