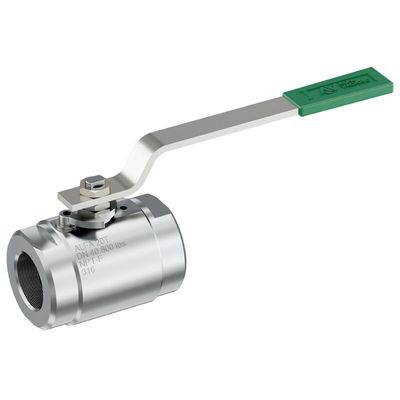

ALFA VALVOLE - Model 20T 800 lbs -Screwed Body Ball Valve

SHARE
The ALFA 20T by Alfa Valvole is a robust, two-piece, screwed body type ball valve designed for industrial use, capable of withstanding pressures up to 800 lbs (138 bar). Offering compact and straightforward construction, it features either a full bore or a reduced bore, allowing for versatility in application across various industries and media. The valve is constructed from forged bar and its design adheres to ASME B16.34, EN 12516-1, and EN 17292 standards, ensuring durability and compliance. Available in different materials, it supports multiple end connections such as threaded (NPT ASME B1.20.1, GAS ISO 228/1), butt welded (BW Sch.80 ASME B16.25), and socket welded (SW ASME B16.11). The valve operates effectively within a temperature range of -40°C to 200°C and maintains zero leakage according to EN 12266-1 Grade A. Its innovative features include a maximum tightness stem O-ring for minimal fugitive emissions, an antistatic device in accordance with API6D and ATEX 2014/34/UE, an anti blow-out stem design, and fire safe gasket configurations certified under EN10497, API6FA, and API607. It is also equipped with ISO 5211 top mounting for actuator assembly.
Most popular related searches
ball valve
valve operator
fugitive emissions
2-piece ball valve
EN standard
fugitive emissions control
gaskets
emissions control

2 Pieces screwed type ball valve. Compact, simple and strong design. Body type: composed by two screwed parts with threaded or welded connections. The compact design make this valves useful for a wide range of application, industries and medium.

  • End connection threaded: NPT (ASME B1.20.1) - GAS (ISO 228/1)
  • End connection butt welded: BW Sch.80 (ASME B16.25)
  • End connection socket welded: SW (ASME B16.11)
  • Size range: 1/4” ≤ DN ≤ 2” / 06 ≤ DN ≤ 50
  • Pressure range: 800 lbs (138 bar)
  • Temperature range: -40°C ≤ T ≤ +200°C (standard execution)
  • Face to face: Manufacturer standard
  • Design according to: ASME B16.34, EN 12516-1, EN 17292, PED 2014/68/UE
  • Tightness class: Grade A (Zero Leakage) acc. EN 12266-1
  • Body: Forged bar
