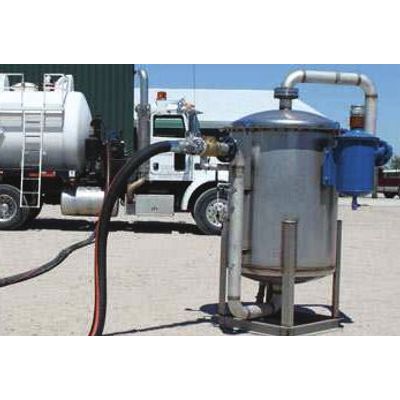

Eliminator - Model 450 -Scrubber System
Vapor Tech`s Eliminator 450 Vapor Absorber Unit is designed to treat hydrocarbon emissions from vacuum trucks and tanks. Unique 100% stainless steel design requires no utilities and offers up to 98.5% removal of organics such as gasoline in the vapor phase. This system can be placed in a `high work` area and during vacuum operations trucks may hook their pump exhaust to the unit to meet air regulations. These are also effective for use on frac-tanks and other small tanks to handle vapors during product movements (displacement). BIO SCRUB X chemical agent has been used in this scrubber unit and has been shown to yield ultra-high removal efficiencies. This chemical media is economically priced and spent media in most case may be used as fuel due to the high BTU value. Eliminator 450 comes standard with sample ports, check valve and knock-out pot. Available for short or long term rental.
- Removal efficiencies as high as 98.9% for hydrocarbons such as gasoline!
- Uses Vapor Tech’s economically priced Bio Scrub X chemical media to absorb hydrocarbons.
- Excellent for vacuum truck emissions & tank venting operations.
- Includes check valve, sample ports and knock-out canister.
- 304 SS construction guarantees long life and dependability.
- Requires no utilities!
- Excellent for remote locations.
- Extremely easy to operate!
Unit Footprint: 6’ x 6’
Unit Height: 7.5’
Vapor Inlet Size & Type: 4” camlock
Vapor Outlet Size & Type: 4” camlock
Typical Chemical Volume: 125 gallons
Maximum Airflow: 500 CFM
Maximum Pressure: 10 PSI
Maximum Vacuum: Not designed for vacuum
Sample Ports: One per suction and discharge (vapor)
Utilities Required: None
Pressure Drop Across Unit Approximately 30” wg @ 450 CFM
