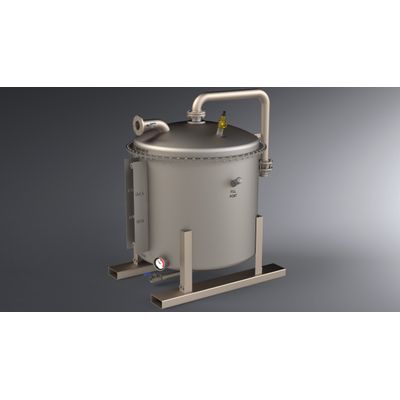

Eliminator - Model 550-304S -Scrubber System
The E550-304S is a `forced induction` vapor scrubber unit. The main shell and internals of this unit are made from 304 stainless steel for corrosion resistance and longevity. These units use the force of the vapors through the unit to come in contact with our specialized stainless distributors which are located inside of the unit. The primary distributor creates a 360 degree pattern for the vapors to radiate out to the main distributor. The main distributor has enormous surface area yet provides almost no back-pressure inside of the unit. It is here where liquid-to-vapor cohesion takes place. This transfer zone yields extremely high removal efficiencies (high as 98%) for compounds such as hydrocarbons.
- Removal efficiencies as high as 98.5% for hydrocarbons such as gasoline!
- Uses Vapor Tech’s economically priced Bio Scrub X chemical media to absorb hydrocarbons.
- Excellent for vacuum truck emissions & tank venting operations.
- Includes check valve, sample ports.
- Requires no utilities!
- Excellent for remote locations.
- Using other scrubbing solutions, unit able to scrub a host of other vapors.
Unit Footprint: 5.5’ x 6.5’’
Unit Height: 9’
Vapor Inlet Size & Type: 4” Flange
Vapor Outlet Size & Type: 4” Flange
Typical Chemical Volume: 275 gal (normal) / 400 gal (max)
Maximum Airflow: 550 CFM
Maximum Pressure: 2 PSI
Maximum Vacuum: 50” of W.C.
Sample Ports: One per suction and discharge (vapor)
Utilities Required: None
Pressure Drop Across Unit: 1.3 PSI (36” of water) at 450 CFM
VAPOR: RECOMMENDED CHEMICAL COUNTERACTANT
Hydrocarbons: Bio-Scrub X
H2S: Enviro-Scrub VT
H2S and Hydrocarbons: BSX50-EVT6
Phenol: EZ-STRIP SS
Vinyl Acetate: VAMSOL 40
