LMK Insignia™ - Seamlessly Molded End Seal Sleeve

360 Degree Swelling Gasket

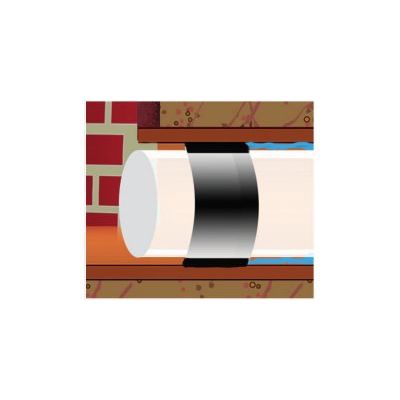

The Insignia End Seal Sleeve is a seamless molded seal with no joints or weak points preventing any damage or inefficient sealing of the annular space between the liner and the host pipe.

Enhanced Stability with Retaining Rings
The Insignia End Seal Sleeve includes a retaining ring that is placed on the leading end of the liner. This ring holds the end seal in place and ensures no movement is allowed during CIPP rehabilitation.

Significant Surface Area
The gasket allows for more swelling than less precise methods of sealing such as hydrophilic tape. The End Seal is able to absorb more water and seal the annular space effeciently because of it’s larger surface area.

Compatible with Multiple Types of CIPP
The Insignia End Seal Sleeve is a versatile hydrophilic sealing system compatible with all types of CIPP liners including inversion and pull in place liners. The End Seal Sleeve will swell in the presence of water regardless on the type of host pipe.

• Since the INSIGNIAIM End Seal is a sleeve, it provides up to live times more sealing surface than other end sealing systems and hence a more effective seal than that provided by just a strip of seal ing material which is ineffectively glued or taped onto the host pipe.
• Due to the elongated cylindrical shape, the Insignia End Seal Sleeve is more secured and stable once it is positioned within the pipe.
• The INSIGNIA End Seal Sleeve is a seamlessly molded seal without any joints thus creating a 360* water tight seal without any weak points.
• The LMK retainer rings secure the End Seal Sleeve in place and prevent the sleeve from folding over in the pipe.
• The INSIGNIA End Seal Sleeve is compatible with all types of Inversion Liners and Pull-in-Place Liners.
