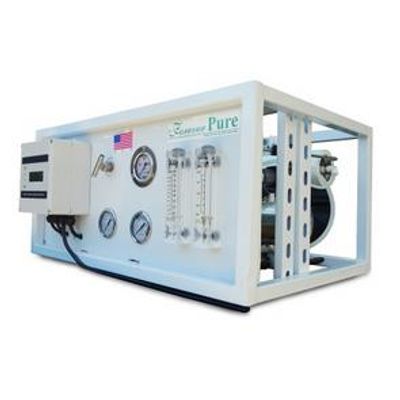

ForeverPure - Model 200 GPD -Seawater Reverse Osmosis Desalination System (Watermaker)

SHARE

The construction of the membrane is a Thin Film Composite (TFC). It is the highest quality membrane available in the industry. The reverse osmosis pressure vessel is a heavy-duty housing made of corrosion resistant fiberglass.

Most popular related searches
seawater reverse osmosis desalination system
seawater reverse osmosis desalination
seawater reverse osmosis system
seawater reverse osmosis
reverse osmosis desalination system
reverse osmosis system
seawater desalination system
reverse osmosis
reverse osmosis desalination
desalination system
  • Converts Seawater to potable grade water.
  • Can run with solar/wind power generator

For:

  • boats
  • beach houses
  • beach side restaurants
  • emergency preparedness
  • hydroponics
  • etc.
RO System
  • Pre-Filtration System: PVC housing, 5-micron cartridge type sediment filter further reduces suspended solids in the feed water stream to RO system. It protects the RO high-pressure pump and lead end RO membrane elements from debris. 5 GPM rating. 1 No.
  • Membrane Housing: fiberglass, 2.5" housing, holds 1 membrane, 1000 psi rated pressure vessel, 1 No.
  • Membranes: 1 No. 2.5"x40"
  • High pressure RO Pump: CAT Pump, 316 SS
  • Motor (120VAC/60hz/single phase): 3/4 HP, TEFC.
  • High pressure side piping material: 316L Stainless Steel
  • Low pressure side piping material: Schedule 80 PVC
  • Concentrate control valve: 316 Stainless Steel
  • Water quality monitor: product water TDS meter
  • Flow meters: Panel Mount Flow Meters for feed water and product water.
  • Pressure Gauges: Feed Water Pressure, working pressure, Concentrate
  • System controls (automatic operation ): Automatic control to provide start/stop, sequential, and alarm control.
RO System start permissible conditions:
  1. Power On
  2. Start button pushed
  3. No Low pressure Fault
  4. Permeate water tank level below low level (low and high level switches are on open
  5. position)
Five conditions will cause the RO to shut down the machine:
  1. High working pressure,
  2. Low inlet pressure (<20 psi)
  3. over current
  4. Product water storage tank level high
  5. Shut-down button
  • Daily production rate: 200-300 GPD/ 757-1135 LPD
  • Feed water: less than 38000 ppm
  • Required feed water pressure: 40 psi
  • Average feed water temperature: 25 °C/ 77 °F (output is rated at this feed water temperature)
  • Product water quality: less than 500 ppm
  • Recovery Rate: 10%
  • Feed water rate: 1.5 GPM
  • Working Pressure: up to 950 psi
  • Dimension (L x W x H): 122 x 51 x 45.7 (cm)/ 48 x 20 x 18 (in)
  • Shipping Weight: 190 lb/ 86 kg (including crate)
