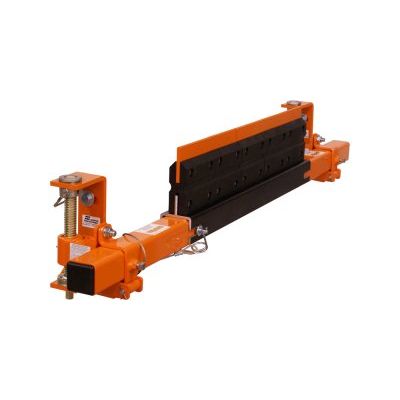

Martin - Model SQC2S -Secondary Cleaners

The SQC2S™ Tensioners allow simple alteration of blade-to-belt pressure to maintain cleaning efficiency regardless of blade wear. A lock pin keeps the tensioner in place to maintain constant tension while the blades conform to the belt profile by adjusting individually to provide continuous contact across the belt. Its compact design allows installation in close quarters while its narrow profile resists material buildup.

Blade replacement is simple and straightforward; remove the pin, slide the cartridge out, service, and return to duty. Available with acid-resistant blades for belts with clips and suitable for use with reversing belts. Farside Tension Adjuster is also available to simplify service, allowing adjustments to blade tension to be made from a single side of the belt.

The SQC2S™ Secondary Belt Cleaner offers five unique blade cartridge options to match the needs of your application.

• Rugged belt cleaner construction withstands punishing applications, like high-speed belts and high-tonnage loads
• Patented rubber buffers maintain cleaning pressure while deflecting to allow splices to pass
• Blade replacement is simple: remove pin, slide out cartridge, service and return
• Compact secondary belt cleaner design allows installation in close quarters; narrow profile resists material buildup
• Rubber buffers allow for reversal of belt direction without damage to belt

Suited for medium to heavy-duty applications, on belt widths from 18 to 96 inches (~400 to 2400 mm) operating at speeds up to 1000 fpm (5.1 m/sec)

• Martin Engineering’s color-coded high performance urethanes available to suit application
• Available with acid-resistant blades for belts with clips, acid-resistant for reversing belts, tungsten carbide or urethane
• Farside Tension Adjuster also available

• Belt Width Up to 96 in (up to 2400 mm)
• Belt Speed Up to 1000 fpm (up to 5.1 m/s)
• Temperature Between -30 degrees F and 300 degrees F
• Corrosive Conditions Yes
• Underground Applications Yes
• Compatible with Reversing Belts or Roll Back Yes
• Accommodates Mechanical Splices Yes
