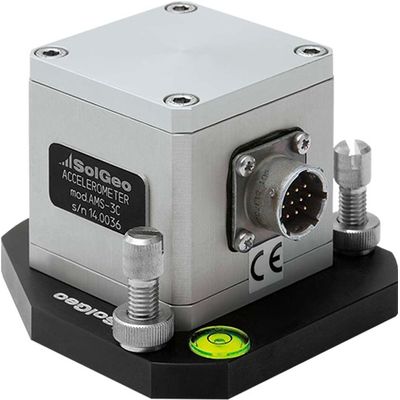

SolGeo - Model AMS-Plus MEMS-1C/2C/3C -Seismic Accelerometer

SHARE

AMS-PLUS MEMS seismic accelerometer with high sensitivity suitable for any environmental condition and designed for the measurement and study of low intensity accelerations in the range 0-500Hz. AMS-PLUS models are high-sensitivity sensors designed for seismic purposes and for low-intensity, low-frequency motion studies. AMS-PLUS offer low noise and higher dynamic range respect to standard AMS. Accelerometers provide a high level, low impedance output. In most applications, no signal conditioning is required. These sensors use low-noise MEMS to provide low-frequency measurements in the micro-G range. It is available in single, biaxial or triaxial configuration.

Most popular related searches
seismic accelerometer
accelerometer
seismic
triaxial accelerometer
vibration monitoring
environmental design
  • Single, biaxial or triaxial accelerometer settings within the same case.
  • Different fixing methods by dedicated plates.
  • Available in 2 versions: with connector or with 3m cable output.
  • IP65 with connector or IP68 with gland and cable output.

  • Temporary or quick vibration measurements
  • Disturbance to the person
  • Though environmental conditions

  • Number of axis: 1, 2, 3, orthogonally oriented
  • Full scale acceleration (available Ranges): ± 3g or ± 5 g
  • Output voltage: ± 4,5 Volt differential
  • Sensitivity: 1500 mV/g (3 g model) - 900 mV/g (5 g model)
  • Frequency response: 0 - 500 Hz nominal, -3dB (3g model), 0-1100Hz (5g model)
  • Operating voltage: +6 to +15 Vdc, 100 mA (for triaxial model)
  • Output impedance: 90 Ohm
  • Dynamic range: 120 dB typ (0-10Hz); 108.5dB (0-100Hz)
  • Noise density: 0,7 µg/√Hz typical (3g model)
  • Non-linearity: 0.3%
  • Offset drift: ±0,3mg/°C (3g model), ±0,5mg/°C (5g model)
  • Full scale drift: 120 ppm/C°
  • Sensor test: External test input, +/-0,25g 19Hz output

Environmental characteristics

  • Temperature, operating: -20 to +60 Deg C
  • Temperature, storage: -40 to + 90 Deg C
  • Humidity: 100%
  • Shock survival: 1500
  • Ambient pressure: 0 to 5 bar

Physical characteristics

  • Weight: 800g
  • Dimension (LxWxH): 60mm x 60 mm x 60 mm (without connectors)
  • Case material: Anodized Aluminium
  • Protection rating: IP65 with connector or IP68 with cable gland
  • Electrical interface: 10 terminal pins CONNECTOR / cable gland
