MAE - Model CPS12PB -Seismic Prospection Array Cable
FromM.A.E. Srl
Seismic cable equipped with 12 sockets (channels from 13 to 24) to which it is possible to connect the CPS12PA cable (channels from 1 to 12) in series to create a single layout with 24 sockets in total, separable into two sections for greater transport convenience.Most popular related searches
Equipped with a 55-pole male VEAM connector at the head. Due to cable with flexible TPE insulation and yellow polished PUR sheath, Mae cables feature an high resistance to drag and wear in general. Connecting bushes, of mueller clip type, are stored in shells of a special blend of plastic material which makes them resistant and at the same time flexible. Cables are supplied complete with reel, transport clamps and military-type bayonet plug connectors to speed up connection to the instrument.
- CPS12PB03
12 CHANNELS SEISMIC ARRAY, 3 MT SPACING
Lenght: 36 m, Cable reel dimensions: 320x210x402mm, Weight: 4,5Kg - CPS12PB05
12 CHANNELS SEISMIC ARRAY, 5 MT SPACING
Lenght: 65 m, Cable reel dimensions: 320x210x402mm, Weight: 7,5Kg - CPS12PB10
12 CHANNELS SEISMIC ARRAY, 10 MT SPACING
Lenght: 120 m, Cable reel dimensions: 610 x 475 x 385 mm, Weight: 14 Kg
Generals:

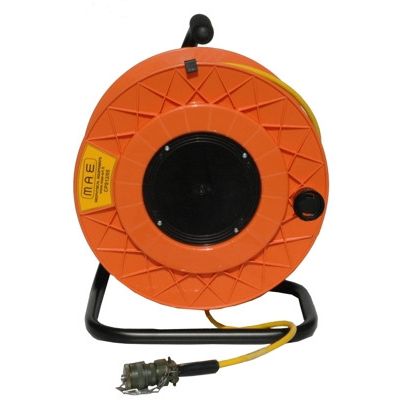

- Cable reel: iron structure, thermoplastic reel resistant to shock
- Dimensions: 320 x 210 x 402 mm
- HS code: 85444190
Connector:
- Contacts: 55 gold plated over nickel
- Installation: 3 point bayonet with 5 polarizing keys
- Certifications: military MILC-26482, JSS50813
Cable:
- Conductors: tinned copper 24x2x28AWG
- Insulator: TPE
- Sheat: yellow polish PUR
Takeouts:
- Takeouts: 12
- Initial lead: 3 m
- Connector: Mueller clips
- Material: Inox AISI 304
- Diameter: 12 mm
