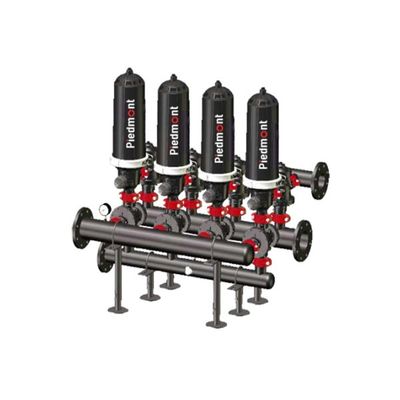

Piedmont - Model PSCD-Q2000 -Self-Cleaning Disc Filters
Self-cleaning filtration system consists of several filter units, each unit with comprised grooved discs to remove particles with a size bigger than the required filtration grade. Piedmont grooved discs combine on-surface filtration with in-depth filtration to achieve the maximum precision and safety in the filtration. The particles are rejected from the channel of the discs.
Most popular related searches
self-cleaning filtration system
self-cleaning filtration
disc filter
depth filtration
hydraulic pneumatics
hydraulic valve
three-way valve
self-cleaning filter
disc filtration
water filtration
- Efficient filtration with low back flushing water consumption.
- Hydraulic / pneumatic drive automatic back flushing.
- Back flushing cycle can be activated by differential pressure & timing, without an interruption of filtration.
- Modular design for space saving, free combination according to the mounting space.
- Flange standard optional for ANSI B16.5 / DIN2576 / GB9119.
- Filtration grade optional for 50 / 100 / 130 / 200 micron etc, further requirements please refer to the manufacture.
- Filter discs with high corrosion resistance, applicable for more complex fluids.
- Low maintenance cost, reliable safe operation and long service life.
During filtration phase, water flows from the inlet manifold through the three-way hydraulic valves into the filter body. Water through the discs for a depth filtration and particles rejected on the surface of the discs. Water after filtration flows out through the outlet manifold.
- MODEL: PSCD-Q2000
- Filter Unit: 2″
- Max. working pressure psi (Mpa): 145 (1.0)
- Min. back flushing pressure psi (Mpa): 36.25 (0.25)
- Filter Shell Material: Glassfiber Reinforced Polyamide
- Disc Material: PP
- Sealing Material: Rubber and SS316 Clamp
- Back Flushing Water Consumption gpm(l/s): 47.55 (3)
- Advise Back Flushing DP psi (Mpa): 7.25 (0.05)
- Filtration Surface inch2 (cm2): 232.5 (1500)
- Weight (kg): 9.7 kg
- pH: 4 to 13
- Temperature °F (°C): 3 to 140 (0 to 60)
