PURItech - Model DAS-DBS Type C -Self-cleaning System
FromPURitech Gmbh
This affordable system utilizes permanent and passive filter regeneration with fuel born additive. The installation works as a replacement for all common machines.
Most popular related searches
diesel fuel level sensor
filter cleaning system
self-cleaning filter
dosing system
particle filter
filter cleaning
level sensor
dosing pump
emissions control
float switch
- Self-cleaning filter system without downtime, ideal system for continuous use / multi shift operation
- Permanent, passive filter regeneration through fuel born additive (diesel – additive)
- High particle filter efficiency >99%
- Easy installation; the system can be retrofitted on every vehicle (muffler replacement)
- Important system advantage: affordable filter system
- Application : Medium load with periodic full load peaks
- Type of Regeneration : Passive regeneration
- Regeneration Temperature : 80 C for 5 min (each 4 Oh)
- Regeneration Time : Permanent self-cleaning during operation
- Regeneration procedure : Fuel born additive with “on-board” additive dosing system
- Emission Reduction :
- Particle: -99%
- Carbon oxide (CO) -95%
- Hydro Carbons (HC) -99%
- Filter Medium : Filter monolith, Silicon Carbide (SiC)
- Warranty : 1 Year

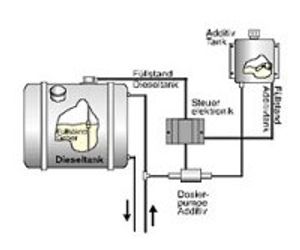

- Additive is added via dosing pump and return line into the diesel tank
- Additive will be added after each diesel refuel
- A diesel fuel level sensor calculates the right amount of additional additive
- A float switch monitors additive level. If level is low an alarm is shown at a display/control unit
- Dosing rate is adjustable on the display/control unit. Additive usage are stored within the electronic unit and shown at the display and control unit
Application:
Engines and vehicles with medium load and periodic full load peaks
Engines with high emissions (high opacity) i.e., old engines and vehicles
Regeneration Temperature:
DAS-DBS Type C: 380 C for 5 min. (each 4 Oh)
