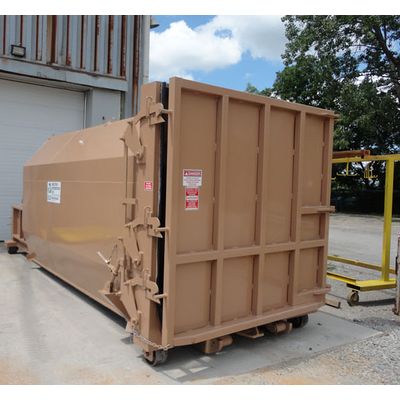

Tri-Pak - Model SPH-XWM Series -Self-Contained Compactor
The SPH-XWM is a self-contained or “portable” compactor that is specifically designed for waste streams that contain a large percentage of wet waste. The self-contained compactor will contain all of the waste stream liquids in the unitized container and prevent/eliminate seepage. Each compactor is manufactured with fully welded seams, contains a 4″ liquid sump area and is equipped with a dump door that contains a full perimeter flexible “T-seal”. This seal prevents any migration of liquids between the container door frame and the door itself. This model is available in a wide range of capacities from 15 to 38 cubic yards and can be customized to fit our clients individual needs. This model has one unique advantage over the standard SPH-X compactor.
The clear top or “charge opening” is significantly larger 46″ x 70″ than the SPH-X (42″ x 60″); which enables it to handle more waste per ram cycle as well as larger individual waste items within the waste stream itself.
- UL/CSA Approved Design
- Meets/exceeds ANSI Z245.2 regulations
- Meets/exceeds OSHA regulations
- PLC “flex-design” based control systems
- NEMA 4 rated enclosure
- Internal timers prevent system run-on
- Self-diagnostic indicators
- 24-volt controls
- Adjustable multi-cycle timer
- 75% and 100% full light
- Auto-alert maintenance mode
- Heavy duty oil-tight pushbutton controls
- Key lockable start pushbutton
- Advance-warning light
- Fluid-filled pressure gauge
- Oil heater
- Odour control system
- Open hopper (for top or loading dock)
- Fully enclosed hopper with door
- Through the wall installation kits
- Walk-on or drive-on decks
- Safety gate
- Hydraulic cart-dump systems
- Control System 110 volt 60 cycle powered by step-down transformer
- Control Panel Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, dual current sensors
- Power 208/230/575 Volt, 3 Phase 60 Cycle
