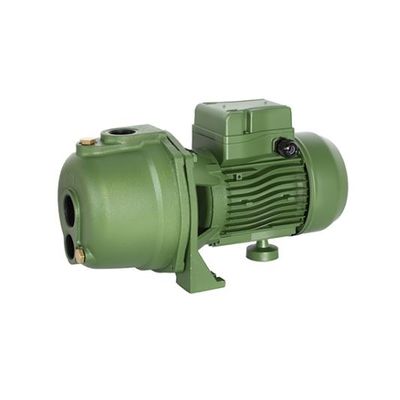

Sea Land - Model JAP Series -Self-Priming Centrifugal Deep Suction Electric Pump

FromSea-Land Srl

SHARE

The self-priming centrifugal deep suction electric pumps series JAP have been designed to pump clean water from wells of at least 4” when the water level is more than 8 m deep. Liquid temperature not higher than 35 °C for domestic use (CEI EN 60335-2-41) or 60 °C for other use, while the ambient temperature must not be higher than 40 °C. Flow rate up to ~ 3,6 m3/h. Heads up to ~ 50 m.

Most popular related searches

self-priming centrifugal electric pump

self priming electric pump

self-priming centrifugal pump

centrifugal electric pump

centrifugal pumping

centrifugal pump

Pump body: cast iron G20 with anti-corrosive coating
Motor bracket: in die casting aluminium UNI 5076 (cast iron for JAP 150-200)
Ejector: cast iron G20 with anti-corrosive coating
Diffusers, Nozzle & Venturi tube: Techno-polymer
Impellers: polymer (stamped brass UNI-EN 12165 on demand)
Pump shaft: stainless steel Aisi 304 (Aisi 420 F for JAP 80-100)
Mechanical seal: carbon-ceramics

MOTOR

The control motors are asynchronous, squirrel cage-type, closed, with external ventilation

Incorporated motor protection and capacitor always on, for single-phase models
The motor protection for three-phase models must be installed by the customer. Equipment compliant with current standards should be used
Class of insulation:F-service:S1-Degree of protection: IP 44
Terminal board protection: IP 54
