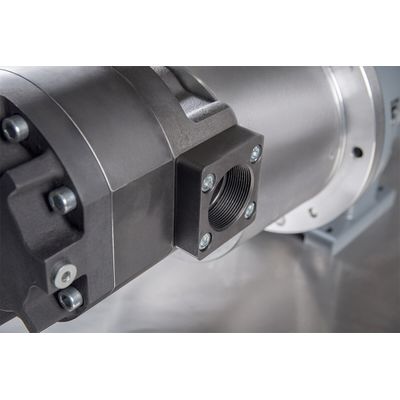

Beinlich - Model ZPA Series -Self-Priming External Gear Pump
The self-priming external gear pump ZPA is particularly suitable for uncritical media without fillers which are compatible to the used standard materials. The pump is an ideal solution for bottling and filling, as it can be variably applied in any installation length. A combination to multiple flow pumps is as possible as the combination with high pressure radial piston pumps.
Most popular related searches
- Displacements 0.1 to 2,600 cc/rev
- Speed range 10 to 1,750 rpm
- Viscosity range 0.5 to 1,000,000 mPas
- Ambient temperature range -30 to +60°C
- Fluid temperature range / operating temperature range -20 to +150°C
- Temperature for fluids up to 350°C (on request)
- Pressure range up to 200 bar
Areas of application
- Filling
- Bottling
- Filtration
- Heating circuits
- Cooling circuits
- Lubrication
- Oil hydraulics
- High temperature application (on request)
- Variable installation length
- Low pulsation
- Low noise operation
- Long service life
- High volumetric efficiency
- Different material combinations possible (e.g. stainless steel, bronze, and many more)
