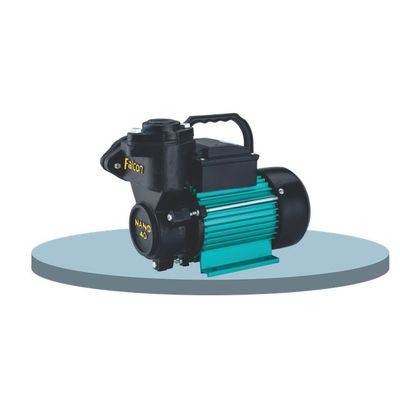

Falcon - Model Nano-40 -Self Priming Monoblock Pump
Falcon Nano Series: Self Priming Monoblock Pumps: Falcon Nano, Self Priming Monoblock pumps are best suited for domestic water supply. Energy efficiency and low maintenance issues are what makes the Nano 50 perfect for domestic use. Designed with impeccable raw material and advanced designs, the Nano 40 offers unbeatable performance at an unbelievably low operating cost.
Most popular related searches
self-priming monoblock pump
self-priming pump
monoblock pump
domestic water supply
domestic water
water supply
Material Of Construction - Motor
- Mechanical Seal : Carbon & Ceramic
- Motor Shaft : SS-410
- Motor Body : Aluminium
- Bearing : SKF
- End Cover : FG-260
- Bracket : FG-260
- Flange : FG-260
- Casing : FG-260
- Impeller : Brass
- Cooling Fan : Plastic
- High operating efficiency resulting in lower power consumption
- Good suction lift characteristics
- Inbuilt thermal overload protector in al single phase pumpsets
- Specially designed for wide voltage operation
- Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
- Back pull-out design for easy servicing and repair
- Double shielded ball bearings, so no need of external lubrication
- Mechanical seal is provided as per customers requirement.
- Power Range : 0.37Kw (0.5 HP)
- Version : Single Phase, 200-240V, 50Hz AC Supply
- Speed : 2880 RPM
- Maximum Total Head : 25 Mtr.
- Maximum Flow Rate : 2160 LPH
- Maximum Suction Lift : 5 Mtr.
- Degree of Protection : IP 44
- Class of Insulation : B
- Maximum Ambient Tem. : 40 C
- Sealing : Mechanical Seal
- Type of Duty : S1 (Continuous)
- Direction of Rotation : Single Phase, Clockwise from driving end
- Nominal Pumpset Size (Suction X Delivery in inch) : 1" X 1"
- High operating efficiency resulting in lower power consumption
- Good suction lift characteristics
- Inbuilt thermal overload protector in al single phase pumpsets
- Specially designed for wide voltage operation
- Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
- Back pull-out design for easy servicing and repair
- Double shielded ball bearings, so no need of external lubrication
- Mechanical seal is provided as per customers requirement.
