Schleuniger - Model E400 -Semi-Automated Cut and Strip Machine
The Cut & Strip Family E400 processes wire, tubing, ribbon, and multiconductor cables from 0.8 – 12.5 mm (0.032 – 0.49") with cross-sections from 0.14 – 16 mm² (26 – 6 AWG). Standard applications of the Cut & Strip machine series E400 include stripping the outer jacket in several steps, as well as full and partial strips on either or both sides. It processes wires, tubing, ribbon, and multiconductor cables, including insulation such as PVC, PUR, or Teflon. A short piece kit allows for the processing of short wires.Job creation is made easy with predefined and verified default parameters. The intuitive S.Drive software facilitates the creation of jobs and article programs. The "Quick-Run Mode" allows for immediate production with just a few clicks.The contact pressure on the belt drive feeding unit is programmable. It allows for very fine and targeted adjustments.
High Precision with an Integrated Short Piece Kit

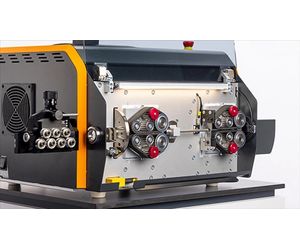

The E400 is equipped with a high-resolution cutting unit and high-precision clamping axes. A short piece kit for processing short cables is already integrated into the belt drive.
The durable coated belt drive on the Cut & Strip Family E400 ensures optimal transport of cables. The contact pressure is programmable for finely targeted feeding.

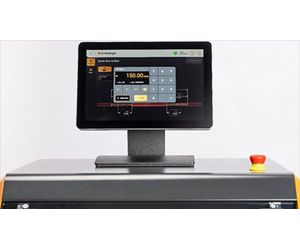

The intuitive display makes creating jobs easy. The S.Drive software will guide the operator through setup and assist with troubleshooting providing information on the HMI.
Cut & Strip Family E400
Metric
- Wire outer diameter min.: 0.8 mm
- Wire outer diameter range: 0.032 - 0.49 in
- Wire length/standard mode: 23 mm (0.90") -1,000,000mm (39,370")
- Wire cross section: 0.14 - 16 mm²
- Interfaces: USB-A, USB-C, SMI (D-Sub 15-pol) Ethernet, ESC (Emergency Stop Circuit)
- Conductor cross section solid wire: 0.05 - 2 4 mm²
- Wire length max.: 1000000 mm
- Strip length, full stripping on left side max.: 60 mm
- Strip length, full stripping on right side max.: 195 mm
- Wire outer diameter max.: 12.5 mm
- Wire cross section min.: 0.14 mm²
- Wire cross section max.: 16 mm²
- Sequence processing (number of wires): yes
- Length accuracy: Repetition accuracy: ± (0.2% + 1.0)
- Drive system: Belt
- Noise level: <70 dB
- Electrical connection: 100VAC to 240VAC, 50/60Hz
- Compressed-air connection: 6 bar
- Air consumption: 10 l/min
- Network connection: Yes
- Recommended operating pressure: 6 bar
- Weight: 42 kg
- Dimensions/length: 580 mm
- Dimensions/width: 519 mm
- Dimensions/height: 329 mm
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
Imperial
- Wire outer diameter range: 0.032 - 0.49 in
- Interfaces: USB-A, USB-C, SMI (D-Sub 15-pol) Ethernet, ESC (Emergency Stop Circuit)
- Wire cross section: AWG26 - AWG6
- Conductor cross section solid wire: AWG36 - AWG12
- Wire outer diameter min.: 0.032 in
- Wire length max.: 39370 in
- Strip length, full stripping on left side max.: 2.36 in
- Strip length, full stripping on right side max.: 7.68 in
- Wire outer diameter max.: 0.49 in
- Wire cross section min.: AWG26
- Wire cross section max.: AWG6
- Sequence processing (number of wires): yes
- Drive system: Belt
- Noise level: <70 dB
- Electrical connection: 100VAC to 240VAC, 50/60Hz
- Compressed-air connection: 87 psi
- Network connection: Yes
- Recommended operating pressure: 87 psi
- Weight: 92.6 lb
- Dimensions/length: 22.83 in
- Dimensions/width: 20.43 in
- Dimensions/height: 12.95 in
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
