Kanadevia Inova AG
Kanadevia Inova SemiDry - Semi-Dry Sorption System for Acid Gas Neutralisation

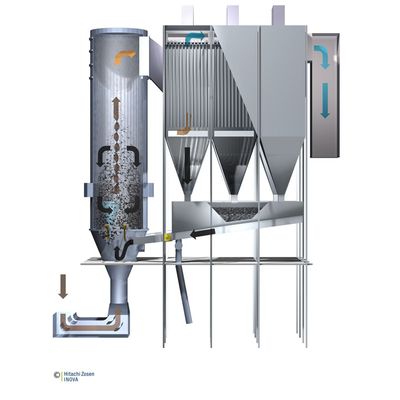

The Kanadevia Inova SemiDry system involves a semi-dry sorption process employing the principle of the circulating fluidised bed. Hydrated lime is injected into the fluidised bed reactor to neutralise corrosive acid gases. The temperature in the reactor is key to the sorption process. To achieve the ideal reaction temperature (typically 145°C), water is sprayed into the reactor simultaneously. In addition to regulating the temperature, the water reactivates the recirculated residues, optimising the separation efficiency of the process.
Most popular related searches
flue gas treatment system
acid gas
gas treatment system
flue gas treatment
dry sorption system
flue gas
temperature regulator
hydrated lime
flue gas system
lime slurry
The Main Advantages of Kanadevia Inova’s SemiDry Process:
- Low emissions and high efficiency if there are changes in the concentration of pollutants in the flue gas (high buffer capacity to prevent spikes resulting from the large quantity of solids in the system)
- Low sensitivity to fluctuations in temperature on entering the reactor (temperature regulated by injection of water)
- High energy efficiency compared with lime slurry-based systems
- High availability and low operating and maintenance costs thanks to use of proven equipment with only a small number of mechanical components
- With a stand-alone SemiDry system, the upper BREF limits can be achieved.
- By retrofitting a DC scrubber, the low BREF values can also be achieved – thanks to the combination with the SemiDry, still wastewater-free
