Disab BagVAC - Semi-Mobile, Electrical Powered Vacuum Unit

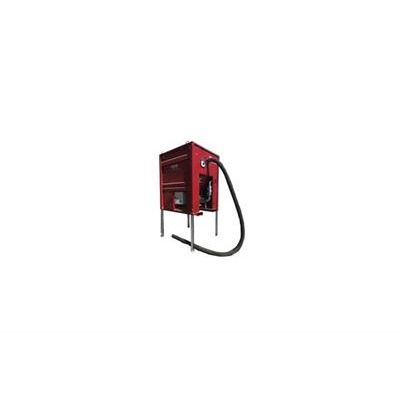

This is a semi-mobile, electrical powered vacuum unit mounted on a rigid stand equipped with retractable legs. It is easily maneuvered using a standard forklift truck or crane. As it is designed and equipped with outlet for big-bag collection, it is also frequently used for material that shall be recycled or needs to be packed into bags. Suitable for temporary cleaning needs in any industrial application. Available in 12.5 / 16.5 / 25 kW.
Most popular related searches
mobile vacuum system
side channel blower
forklift truck
channel blower
vacuum pump
vacuum blower
side channel pump
blower
pump blower
surface safety

- Vacuum pump: Side channel blower
- Max vacuum, mbar: 400
- Max overpressure, mbar: N/A
- Air volume m3/h (unloaded): 1100
- Operation speed (rpm): 2 975
- Power: 16,5
- Voltage Frequency, V/Hz: 400/50
- Tank volume (m3)*: 0,5
- Total tank volume: 1,5m3
- Power source: Electric
- Engine type: N/A
- Tank material:
- Tank tipping: N/A
- Main filter system (m2): N/A
- Safety filter surface(m2): N/A
- Cooling air:
- Atex: On request
- Complete unit (including chassis): 1 130kg
- Total unit length including tuck chassis: 1 430mm
- Total width: 1 650mm
- Height (incl. hose boom): 3 480mm
