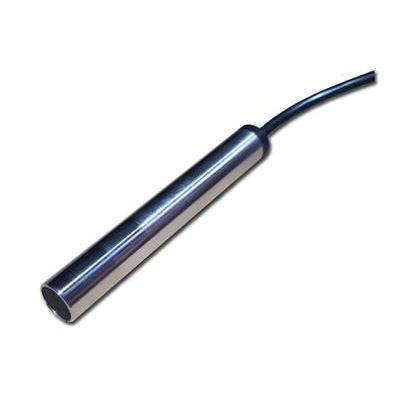

Senect - Model O2S-20-SC -Optical Dissolved Oxygen Sensor
The SENECT Oxygen Sensor O2S measures the concentration of dissolved oxygen in water reliable with a minimum of maintenance. Based on the principle of optical luminescence quenching, the sensor inspires with accurate and long-term stable measurements and does not depend on flow.
Most popular related searches
oxygen sensor
dissolved oxygen in water
optical dissolved oxygen sensor
dissolved oxygen sensor
optical monitoring
optical sensor
oxygen concentrator
oxygen monitoring
temperature sensor
optical oxygen sensor
- Long-term stability due to the optical measurement principle
- Range 0 - 20 mg O2 per l / 0 - 200% saturation
- Minimum of maintenance
- Ideal aquaculture applications
- Precise
- Nearly maintenance free
- Independend from flow
- Inclusive integrated temperature sensor
- Robust stainless steel housing
Due to the optical measurement principle, the sensor does not need to be refilled with consumeables and has no expendable parts except the sensor cap, which can be easily replaced after years of operation. The minimum lifetime of the cap is 1.000.000 measurements.
This makes the SENECT Oxygen Sensor O2S perfectly suitable for many applications, especially for the regulation of the oxygen concentration e.g. in aquaculture farms.
- Dimensions: Diameter 12 mm, length 92 mm
- Material housing: Stainless steel 1.4435
- Range: 0 - 20 mg O2 per l, 0-200% saturation / 0° - 40°C
- Accuracy: O2: < 1% FS, Temperature: < ±1°C
- Response time: T90 < 30 s
- Power consumption: << 1 W
- Cable length: 10 m
- Compatibility: with all SENECT control units
- Ingress protection: IP 68
