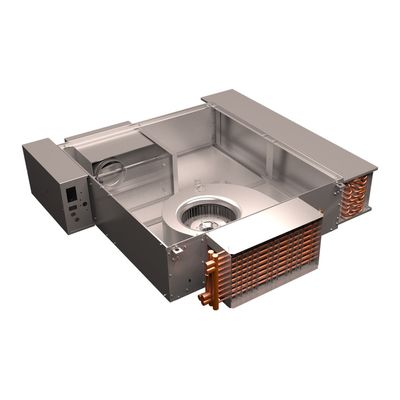

Trane - Sensible-Cooling (DOAS) Terminal Units
These terminal units reduce energy use and operating costs with Electronically Commutated Motor (ECM) and modulating airflow control algorithms. Trane sensible-cooling terminal units are constructed with a 10.5 inches casing height and are an excellent choice when plenum spaces are tight. Additionally, Trane sensible Cooling terminal units are universally handed and optionally equipped with factory mounted and commissioned unit controllers, which reduce installation effort and startup time.
Flexible design, efficient operation, comfortable spaces, and low maintenance.
These low-height terminal units are part of the Trane CoolSense™ Integrated Outdoor Air System, offering flexible design, efficient operation, comfortable spaces, and low maintenance.
Features
- Available Primary Air Inlet Sizes: 4 in. to 8 in. round and 8 in. x 14 in. rectangular
- Airflow Range: 0 - 1,300 cfm
- Available 2-rows, 4-rows, and 6-rows cooling coils and optional hot water and electric reheat
- Standard IAQ metal encapsulated insulation edges and top/bottom access panels
- Standard condensate detection sensor factory installed in the drip pan
- Standard Electronically Commutated Motor (ECM)
- Optional modulating airflow control algorithms with Trane® BACnet unit controller
- Optional LEED wrap for preventing contamination during the construction phase
- Optional return air inlet filter (1 inch throwaway or 2-inch MERV 8)
- Optional factory mounted, wired, tested, and commissioned pressure independent controls
- BACnet Communication
- Trane Air-Fi® Wireless Communication
- Additional factory mounted, wired, tested options
- Modulating actuator
- Power fuse
- Control power transformer
- Toggle on/off switch
- Duct temperature sensor
- Modulating hot water control valves and piping packages
