SEVEN - Model 3S-C2 -Sensor Box

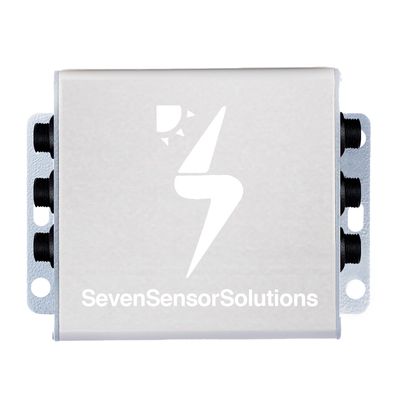

It is an UV protected aluminum box, including an electronic card where up to 6 different sensors can be connected and has an RS485 port output to transfer data in Modbus RTU protocol to the datalogger or Scada system. SEVEN Sensor Box communicates by Modbus RTU protocol through RS485. SEVEN sensor is compatible with many well-known datalogger brands as it is also SunSpec compliance for the necessary devices. The Sensor Box has max. 6 inputs and 1 output connectors. Each plastic connector has a different pin number which prevents any connection confusion during site installation. SEVEN Sensor Box is designed as Plug & Run device and end user friendly operation.Most popular related searches
ambient temperature sensor
temperature sensor
wind speed sensor
wind direction sensor
SCADA system
wind sensor
relative humidity temperature sensor
data logger
relative humidity sensor
SCADA
General Information
- Operating Temperature: -40 °C to +90 °C
- Cable Kind: 3 m LIYYC11Y PUR Cable , UV and weather resistant
- Power Supply: 12 to 30 VDC (30 mA typically at 20 VDC)
- Interface / Communication: RS485 up to 19200 Baud
- Protocol: The sensor box is connected via a 2-wire RS485 bus with open vendor-independent
- Modbus RTU Protocol, Sunspec compliant
- Galvanic Isolation: 1000 V between power supply and RS485 bus
- Sensor Box: Advanced weatherproof junction box made of UV resistant material
- Dimensions, Weight: 108 mm x 140 mm x 42 mm, approx 300 g
- Protection: IP54 (IP65, IP68 options)
Electrical Connection
- Brown: Power (+)
- White: Power (-)
- Green: RS485 A / Data (+)
- Yellow: RS485 B / Data (-)
- Input#1: Ambient or Module Temperature Sensor (PT1000), 4 pin connector
- Input#2: Ambient or Module Temperature Sensor (PT1000), 5 pin connector
- Input#3: Ambient or Module Temperature Sensor (PT1000), 4 or 5 pin connector
- Input#4: 3S-WS-PLS, Wind speed Sensor, 2 pin connector
- Input#5: 3S-WD, Wind Direction Sensor, 3 pin connector
- Input#6: 3S-RH&AT, Relative Humidity&Ambient Temperature Sensor, 7 pin connector
- Output: Power and Communication, 6 pin connector
Other
- Warranty: 5 years Limited warranty against manufacturer defects. Opening of the sensor box by the user or installation staff is not accepted. Opening of the sensor box is one of the reason of terminating the warranty conditions.
Modbus Specification
- Baud Rate: 4800 , 9600 , 19200 , 38400
- Parity: None , even , odd
- Stop Bit: 1, 2 (only none porite)
- Factory Default: 9600 Baud , 8N1 , Address : 1
