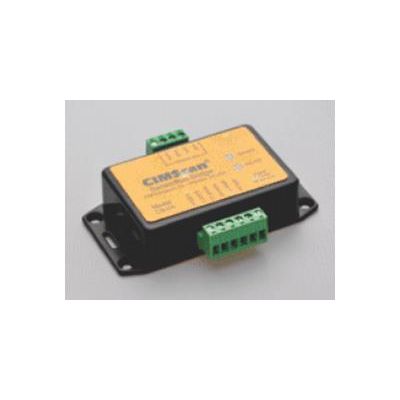

SensorBus Bridge - Model CT/CZ -Sensors Device

The CS-05 is a small, inexpensive device designed to link one or more SensorBus sensors to a CIMScan monitoring system through an eLink Controller. The SensorBus is a 4-wire, high speed, multi-drop communications network designed to connect CT series intelligent sensors to the eLink through a CS-05 adapter. Each sensor on the network has a unique serial number which is used as the address of the sensor and to identify the monitoring point in the host CIMScan system. All SensorBus sensors can be field-calibrated with each sensor containing its calibration settings.
