Jones - Sepor Micro Splitters
SEPOR. Specially designed Jones-type riffle sampler for mixing moderately fine-grained materials and obtaining homogeneous splits. Unit is entirely constructed of 1/8″ hard aluminum alloy. Stainless steel construction available. Four Hy-Back pans supplied.
- Weight N/A
- Dimensions N/A

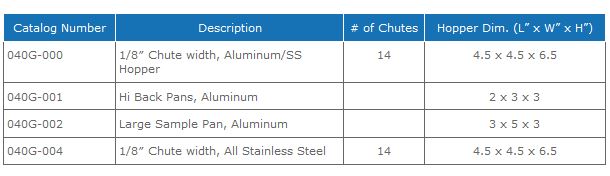

- Model 040G-000 • Microsplitter 1/8 alum., 040G-002 • Large Pan, 040G-004 • Microsplitter 1/8 stainless, 040G-004P • Pan – stainless, 040G-001 • Hy Back Pans Aluminum
Description:

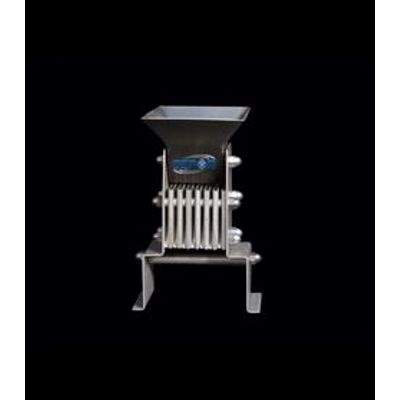

The Sepor Micro Riffle Splitter (Jones Type) is precisely designed to reduce a small, fine powder sample (25 grams to 1,000 grams) of material to a convenient representative sub-sample for laboratory analysis. A hopper receives the material to be split then distributes the material through a series of equally divided chutes, sending 50% of the sample to the left side pan and 50% of the sample to the right side pan. The Sepor Micro Riffle Splitter is simple and easy to use. It is very easy to clean up, with all parts open and easily accessible. The dimensions used to size each Sepor Micro Riffle Splitter are, first, the chute width, second, the number of chutes, and third, the length and width of the hopper.
Construction:
The Sepor Micro Riffle Splitter consists of a stainless steel hopper, stainless steel and anodized aluminum riffle bank, and stainless steel frame with support legs. An all stainless steel version of the Micro Splitter is available, with 1/16″ wide chutes and 1/8 ” wide chutes. 2 stainless steel sample pans are supplied with each Sepor Micro Riffle Splitter.
All stainless steel used in the Sepor Precision Riffle Splitter is 304 SS. The anodized aluminum used in the riffle banks is a hard aluminum alloy.
