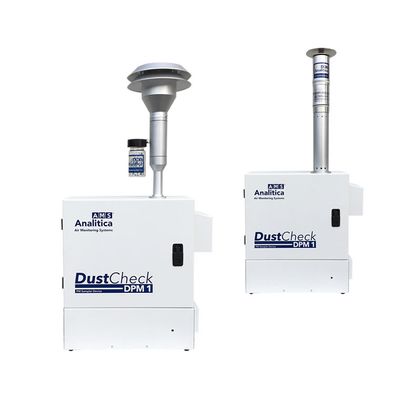

DustCheck - Model DPM-1 -Sequential Sampler

FromAMS Analitica

SHARE

Easy to use, the Dustcheck DPM-1 PM sampler fit with all sampling needs. Based with a powerful aspirating diaphragm pump (the EPA version has built in a single head diaphragm pump) that allows the system to perform sampling in a constant flow option to compensate any pressure drop coming from overload samples. The new microprocessor capabilities allow the user to select and store in the memory up to three different programs with sampling settings ready to start.

Most popular related searches

glass fiber filter

mass flow control

2-stage impactor

single diaphragm pump

barometric pressure sensor

Single 47mm sampling filters
Fully microprocessor based for sampling periods and data management
Large backlight plasma display
Outdoor shelter with secure lock key
Volume sampling for 1 single filter
Environment wind detection available with an optional support

The DustCheck DPM1 sampler is in EN and US-EPA compliance. External case is in aluminum with epoxy paint no corrosion.

The DustCheck DPM-1 supplied with:

1filter holder with 2 filter cassettes
Outdoor ambient temperature with shelter
Instruction manual
AC Plug cable
USB memory stick for sampler data download
Calibration report

EU Compliance: 5 m3/h pump with operative range between 5 and 50 liters per minute
US EPA Compliance: single head diaphragm pump with operative range between 0,5 and 30 liters per minute
Electronic flow control with 1% in accuracy with Mass Flow control
Volumetric flow control wit integrated DryGas Meter with 2% accuracy
Integrated barometric pressure sensor
Temperature sensors at drygas meter, ambient, sampling filter and mass flow
Flow rate standard deviation control with flow fault option and real time data on display
Sampling time and volume pre-selected from main board menu. The user could modify all programmed sampling period also during sampling.
Instrument self-check including leak test (leak test adapter as an option) and sensors (ambient and process sensors)
Optional wind speed and direction sensors to preprogrammed sampling depending from atmospheric conditions
RS 232 data output
USB port for data download
Optional GSM/GPRS data port communication (card not supplied)
If AC Power fault all data will be kept in the memory and the sampler will have an automated start and data saved
Dimensions: 48x44x28 cm (H x L x W)
Weight (no inlet): 16 kg
Power source: 220V-AC (also available in 115V)

Code: Article

600/DCDPM1001K: DustCheck DPM1 sampler (No inlets)
600/600/LWSPM10_3: PM10 38 l/min-EN 12341 Sampling Inlet with Impactor
600/600/LWSPM25_1: PM2,5 38 l/min-EN 14907 Sampling Inlet with Impactor
600/LWSPM01: PM1 38 l/min sampling Inlet with two stages impactor
600/PM10-EPA01K: LVS PM10/US-EPA 16,7 l/min.sampling head
600/WINS-2,5PM01K: EPA Wins Impactor PM2,5 16,7 l/min
600/AFSC2001K: Sampler field support
600/PFC.47PM: Replace filter cassette 47mm
600/GRMET001K: Wind direction and velocity set complete with stand support
600/AFPUF1001GSM: GSM/GPRS module (no data card supplied)
FAN/MFQ047: Quartz micro fiber filters 47mm Box.25pcs
MTL/GP47P: PTFE Coated Glass Fiberfilters, no Identification 46,2mm/50
MTL/GP47AN: PTFE Coated Glass Fiber Filter with numeric s/n 46,2mm/50
NFS/GF1-462-RP50: Glass Fiber Filter Grade GF1-RP (Eq.GFA) 46,2mm/50 Numbered
600/SDC001K: PC Software and Downloader SDC2000
