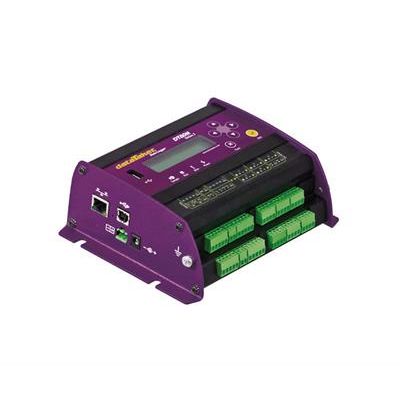

dataTaker - Model DT80M -Series 4 Industrial Data Logger

Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT80M fl exibility.

The dataTaker DT80M intelligent data logger is a fully featured low-powered logging platform with an integrated cellular modem, making it perfect for remote applications. The rugged design and wide operating temperature range of the DT80M provides reliable operation in virtually any environment.

The DT80M’s perfect balance of performance with low-power also allows you to use a smaller solar panel without compromising on functionality.

Forget travelling long distances to get your data. Utilise the DT80M’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server. Alarm conditions can also trigger data delivery in addition to sending alarm messages to multiple email addresses or mobile phones.

The DT80M is confi gured directly in your web browser using dataTaker’s dEX graphical interface. dEX takes you through the confi guration of your logger, showing you wiring diagrams and allowing you to decide – in as much or as little detail – how you want the system to work, suiting both novice or advanced users.

Using the internal modem you can even re-confi gure your system remotely over the internet if required.

• Dual Channel Isolation Technology
• Up to 15 Analog (± 50V) sensor inputs
• Expandable to 300 analog inputs
• 12 fl exible digital terminals
• 2 Serial ‘Smart Sensor’ ports
• SDI-12 (multiple networks)
• Programmable Analog Output
• Integrated cellular modem
• Automatic data transfer via email or FTP
• Sending alarm via SMS or email
• Modbus for SCADA connection
• USB memory for easy data and program transfer

• Research & Development
• Agricultural Research
• Weather Stations
• Total Energy Monitoring
• Environmental Monitoring
• Temperature Profi ling
• Thermistor Arrays
• Aquaculture
• Structural Monitoring
• Strain Gauges
• Process Monitoring
• Fault Identifi cation
• Machine Down Time
• Pressure
• Load Cells
• Flow
• Vehicle Testing
• GPS
