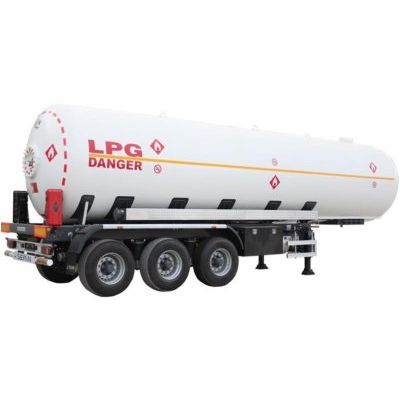

Serin - LPG Tanker
Fifth Wheel Height: 1300 mm. Suitable for 6x4 trucks. King Pin: 2”king – pin detachable from below made by, SAE standards 8 bolt type. Axles: 3 x 12000 kg carrying capacity SERİN brand. Distance Between Axles: 1320 mm. Brake and Suspension System: Air Suspension, ABS or EBS Brake System. Landing Gears: Double Speed, 24000 kg carrying capacity, JOST brand mechanical Landing Gears.. Rear Bumper: Suitable to 70/221/AT standard of the rear bumper. Suitable to 70/221/AT standard of the rear bumper: Carriers with 1 unit wheel chock. Tires & Wheels: 6+1 PCS 385/65 R 22,5.
- Mudguard: 2 PCS galvanized steel mudguards with plastic edges.
- Spare Tire Carrier: One spare tire Carrier
- Paint: The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal. In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be RAL (9003) or will on customer demand. The total thickness of the paint work is 120 micron.
- Electrical Equipment and Lighting: 3 units side (gabber amber) lights and the rear side (park, brake and stop amber lights) Reflector triangles, Electrical system; Flame proof electrical system, 2 X 7-pin electrical socket. Stop lights with protective gril
- Accessories: Hub key, Axles Bolt Nut key, Tool box keys, 2 PCS 6 kg of fi re extinguisher tube with holder.
- Tank Type & Head Type: Horizontal Cylindrical & Elipsoidal
- Project Code: AD- Merkblatter / EN 13445
- Design Temperature: Min -20˚C / max +70˚C
- Design & Test Pressure: 17,5 bar & 26,5 bar
- Material: P355 GH or P355NH
- Tank Volume: 45 m3
- Equipment Tanks Over: Hydraulic Operator 1 unit , 2' Ball Valves 2 units BATU , 2' Hydraulic valves 1 units ATILIM, 3' Hydraulic valves 1 unit ATILIM , 2' Safety Valve 2 units ATILIM , Rotogauge (Rotary Level Indicator) 1 unit , ATILIM Glycerine pressure gauge (0-25 bar), Ø 63 1 unit PAKKENS Thermometer (-30 / 60˚ C) Ø63 1 unit PAKKENS , Acme Filler Cap 2 units ATILIM Manhole 1 unit 16' , Filter 1 unit
- Welding Method: All welders are certified according to EN 287-1:2004 standard. Full penetration will be provided in weld seams. Welding will be carried out as submerged arc welding by welders.The Grooves will comply with EN ISO 9692-2. & The Filling Material with EN ISO 14171 & The Flux with EN 760.
- Heat Treatment: Front and rear dish ends (heads) stress reliefed.
- Baffles: Tank will have 3 units of Anti-slosh baffles.
- Optionals: Pump, Flow meter, Sun Protective Shield, Fully stress relief
