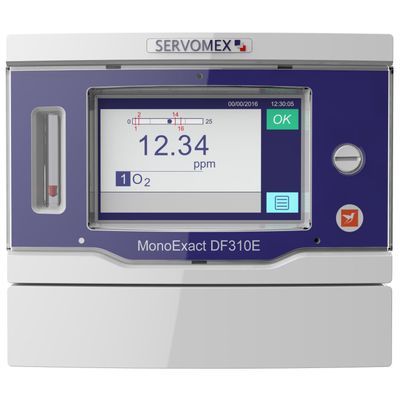

Servopro MonoExact - Model DF310E -Safe Area Gas Analyzers
Next-generation digital oxygen analyzer designed for IG applications, combining trace-level measurement with new performance and operational benefits. Designed specifically for accurate measure of oxygen in industrial gas applications, the MonoExact DF310E is a next-generation digital oxygen analyzer that combines precise trace-level measurement with a new icon driven guided user interface (GUI) and advanced digital communications.
Built around the latest innovations in software and hardware - including a non-depleting Paramagnetic and updated Coulometric digital oxygen sensor - MonoExact DF310E builds on the original DF-310E to give new operational and maintenance benefits that improves user control and reduces cost of ownership.
Offering comprehensive analog and digital communication options for simple integration into a wide range of systems, MonoExact DF310E is backward-compatible with existing DF-310E installations, ensuring it complies with existing standards and customer agreements without the need for re-testing or re-qualification.
- Back-compatible with DF-310E platform, including hardware wiring inputs and gas inlets
- Analog and digital outputs – 4-20mA, RS232, RS485 and advanced digital communications including Ethernet Modbus, Modbus TCP/IP and PROFIBUS
- Optional integration of external AquaXact aluminum oxide (Al2O3) moisture sensor probe to allow for two measurements with one analyzer.
- Compact footprint for simple integration
- Advanced touchscreen GUI for intuitive hands-on setup and operation
- Servomex proprietary software makes reporting and parameter control simple
- Field proven Servomex Coulometric electrochemical performance and reliability
- Non-depleting Paramagnetic sensor option
- Five year replacement warranty on electrochemical sensor
- Minimal training requirements
- Utilizes enhanced Hummingbird sensing technology for precision process measurement
- 100, 1000 and 10000 ppm ranges available (Coulometric) / 0-25% O2 (Paramagnetic)
- Manufactured by Servomex - over 60 years’ experience innovating and pioneering gas analysis and thousands of units used in the field every year
- Complies with Low Voltage, EMC and applicable directives
- European and US Pharmacopeia compliant (Coulometric and Paramagnetic)
- 206mm (8.1”) Wide x 131 (5.2”) High x 245mm (9.7”) Deep
- 4.3kg (9.5lbs)
- IEC 61010-1
- Overvoltage Category II, Pollution Degree 2
- EU EMC Directive
- EU Low Voltage Directive
- Nitrogen production
- Argon production
- Hydrogen production
- Tanker transfill applications
- Specialty gas blending
- Electronic gas verification
Ensure your SERVOPRO MonoExact DF310E analyzer delivers optimum performance with Servomex Service Network.
Through our global network of engineers and service centers, we provide complete lifetime support for your analyzer. Our services range from installation and commissioning to supplying high quality spares and arranging scheduled servicing: visit our Service Network pages to find out more.
