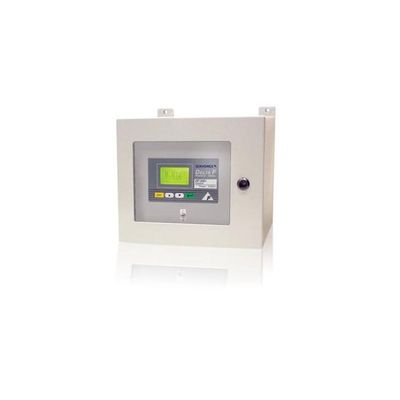

Servotough - Model DF-340E -Hazardous Area Gas Analyzers
High performance Coulometric trace and percent oxygen measurements in pure and multi-gas backgrounds, designed for external location use. The DF-340E uses highly stable Coulometric sensing designed to provide measurements of trace or percent level O2 in pure gas streams and multi-gas backgrounds. Designed for heated or external locations, and certified to CSA Class 1, Divison 2 and the latest ATEX specifications, the DF-340E remains stable in changing sample and flow rate conditions, making it ideal for upset prone conditions.
Suitable for outdoor installation, the DF-340E comes with NEMA 4-rated sensor enclosure options.This makes the DF-340E ideal for applications including pressure swing absorber N2 skids, reactor process control, blanketing and inerting or refining/petrochemical process monitoring.
This device is also optimized to deliver a reduced cost of ownership over product life, thanks to its factory calibrated sensing technology. This simplifies set-up and reduces ongoing maintenance, with only an annual SPAN calibration required.
- Coulometric sensing is ideal for upset prone applications and compensates for sample and flow rate fluctuations
- Operating Range: 0-0.5ppm up to 0-25%
- NEMA 4-rated sensor enclosure available
- Multiple background gas stream monitoring
- Microprocessor driven for easy configuration and maintenance
- Simplified ongoing maintenance requirements
- Long-life Coulometric sensor with five year warranty
- Only requires an annual SPAN calibration reducing device care costs
- Uses industry-leading, high stability Coulometric trace and % O2 sensing with ultra-low drift potential
- Fast speed of response in the presence of changeable sample concentrations or flow rates
- Manufactured by Servomex - over 60 years’ experience innovating and pioneering gas analysis and thousands of units used in the field every year
- 3ppm LDL when operating on 0-1ppm or lower range
- ATEX certified: Ex II 3G Ex nA nC IIC T4 Gc
- IECEx certified: Ex nA nC IIC T4 Gc
- CSA certified for Class 1, Division 2, Groups A,B,C and D certified
- IEC 61010-1
- Overvoltage Category II, Pollution Degree 2
- EU EMC Directive
- EU Low Voltage Directive
- 355mm (13.9”) Wide x 304 (11.9”)
-
High x 301mm (11.8”) Deep
- <13.6kg (30lbs)
- ATEX certified: Ex II 3G Ex nA nC IIC T4 Gc
- IECEx certified: Ex nA nC IIC T4 Gc
- CSA certified for Class 1, Division 2, Groups A,B,C and D
- IEC 61010-1
- Overvoltage Category II, Pollution Degree 2
- EU EMC Directive
- EU Low Voltage Directive
- Pressure swing absorber N2 skids
- Reactor process control
- Blanketing and inerting
- Oil refinery monitoring
- Petrochemical process monitoring
