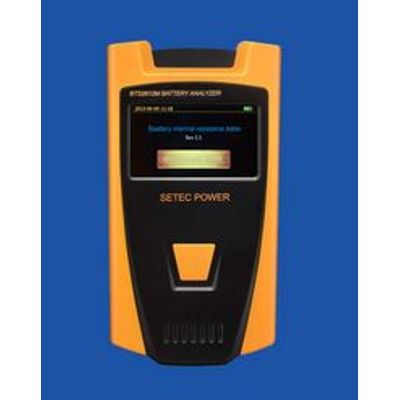

Setec - Model C007 -Handheld Battery Analyzer
Measuring battery`s health status online, no need to depart battery from battery system to ensure safety. ·Measurable 1.2V - 12V and other specifications single cell , capacity range :0 - 6000AH.·Using big DC current test method, strong anti-interference ability, high test accuracy,repeated measurement stability less than 2%. ·One key test , measure the cell battery `s voltage , internal resistance , the connection resistance and capacity between battery. ·Using 4.3" color LCD display, visually display each single cell test parameters and operations; Using resistive touch screen,set parameter and operation by handwriting.
- With a USB interface and the Internet interface,U disk can be stored directly or download data to a computer,the measurement data can be delivered to the network in time, upgrade remotely.
- Equipped with a test clip and probe used for a various test environment.
- With analysis software to analyze the test data , including: voltage , resistance, connection resistance and capacity of a variety of charts and generate test reports automatically.
- Built - in large capacity memory capacity , 9999 × 2000 set of data can be stored , inspection and comparison at any time.
- Using large-capacity polymer battery - more durable ; low power self-consumption , low power consumption , display the remaining capacity of battery through LCD screen.
Battery works as an important part of backup power supply and plays a key role in final guarantee for safe operation of the system. Battery needs to be tested and maintained every quarter or even every month, the test results also needs to be analysised. Internationally the internal resistance tester has been widely used in daily battery maintenance. Battery`s Internal resistance have been recognized as important parameters to determine the status of the battery health accurately and quickly.
