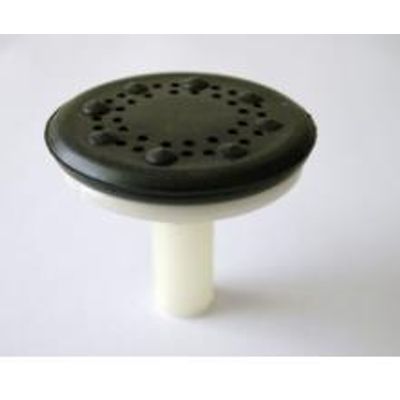

AEC - Model Akwatech - 50 Pg -Sewage Aeration Diffuser
FromAEC ApS
Aeration of sewage in intermediate pumping stations and averaging chambers of sewage treatment plants.
Most popular related searches
sewage treatment plant
aeration diffuser
diffuser aerator
diffuser aeration
diffused aeration
sewage aeration
sewage
aerator
pipe system
pump station
- Diffuser body: 1. Material: polypropylene with 30% of glass fibre
- 2. Diameter: 50mm
- Fastening on pipe system: 1. External thread M14 x 1,25
- 2. Tight-seal rubber connector DR-20
- Membrane: 1. Material - EPDM
- 2. Thickness: 1mm
- 3. Active surface: 10 cm²
- Buble size: 5-30 mm
- Working temperature: +5°C - 80°C
- Recommended air flow: 4 m³/h
- Min. air flow: from 0 m³/h
- Max. air flow: shortly up to 8 m³/h (10min)
- Recommeded quantity of
- diffusers: 4 pcs/m²
- Lifetime: 8 years in municipal tratment plants;
- Notice: Diffuser has received the certyficate HK/W/0249/01/99 of Panstwowego Zakladu Higieny (National Hygiene Instytut) for the purpose of aeration of potable water
