Redragon - Model RFU -SF6 Refill Unit

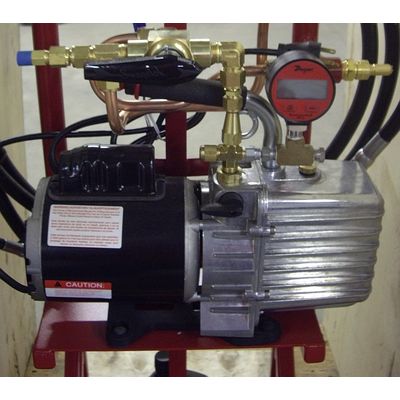

The Redragon RFU is a portable handcart (with optional storage cylinder) designed to evacuate, vacuum and refill small sulphur hexafluoride switchgear and breakers. It operates using a single 3-way valve allow easy switching between evacuation (vacuuming) mode and filling mode. It has an Integral 6 CFM vacuum pump (10 CFM is optional) capable of producing a blank-off vacuum of less than 20 microns or 0.02 Torr. The Unit is available in a 220V, 50Hz single phase version as well as a 120V, 60Hz single phase version and is complete with 10 foot of power cord.
