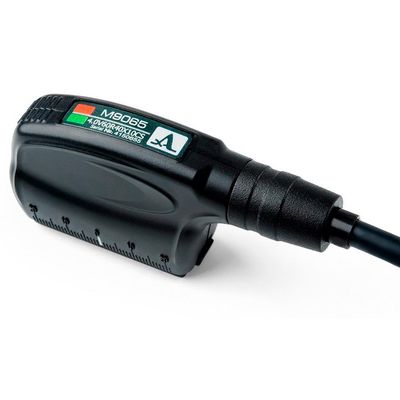

ACS - Model M9065 -Shear Wave Phased Array Transducer
Shear wave ultrasonic phased array transducer for weld joint testing. The ultrasonic phased array transducer M9065 is intended to perform ultrasonic flaw detection in weld joints and other metallic objetcs by transmitting and receiving ultrasonic shear waves. The transducer can be used as a part of TFM Phased Array ultrasonic flaw detectors.
Most popular related searches
ultrasonic phased array transducer
shear wave transducer
ultrasonic flaw detection
ultrasonic transducer
phased array flaw detection
flaw detection
array detector
ultrasonic testing
The transducer can be driven by the following ACS instruments:

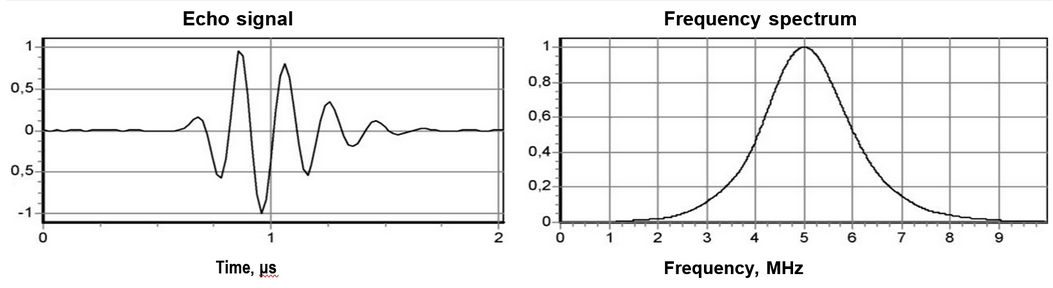

- Type of transducer: angle-beam, piezoelectric
- Type of generated wave mode: shear
- Number of elements: 16
- Pitch size: 2.5 mm
- Nominal frequency: 4 MHz
- Nominal refracted beam angle in steel: 55°
- Nominal operation angle range: 30...80°
- Piezo-element electric capacity: 1500 ± 150 pF
- Maximum excitation pulse voltage, V: ± 250 V
- Operating temperature range: –20...+45°C
- Dimensions: 90 × 42 × 22 mm
- Weight with cable: 200 gr
