SHIFT Saniflo HygienicModel PS2 -25 mm (1

SHARE

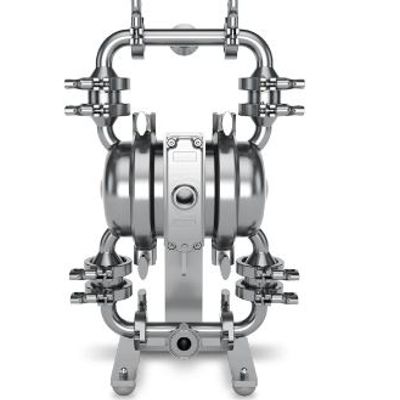

Saniflo™ Hygienic™ Series (HS) pumps are uniquely designed for high-cleanliness requirements and feature a free-draining flow path that enables clean-in-place (CIP) capability. The HS flow-through liquid-path design also eliminates any potential areas where product residue can be trapped and contaminate the product. They are perfect for low-acid, pasteurized and protein-based products all the way up to biopharmaceutical sterile processes. HS pumps also meet the highest standards and requirements in the industry, including 3A, ATEX, EC 1935/2004, USP Class VI* and FDA CFR 21.177. *USP Class VI certification is available only for Saniflo HS pumps with PTFE elastomer options

Most popular related searches
  • Featuring energy efficient Pro-Flo® SHIFT ADS
  • Free-draining flow path for CIP capability
  • Easy assembly with self-centering ball cages
  • Permanent or rotatable stand for cleaning
  • Multiple valve options: ball, mushroom, or flap for different application requirements
  • Shear sensitive
  • Greater flow - more gallons pumped per SCFM
AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • Tri-Clamp®
  • DIN
  • SMS
VALVE OPTIONS
  • Ball
MAX SUCTION LIFT CAPABILITY
  • Full-Stroke Integral Piston - 2.4 m (8`) Dry, 7.9 m (26`) Wet
  • Full-Stroke TPE - 1.2 m (4`) Dry, 7.9 m (26`) Wet
  • Full-Stroke PTFE - 1.5 m (10`) Dry, 7.6 m (25`) Wet
  • Rubber - 3.9 m (13`) Dry, 7.6 m (25`) Wet
MAX FLOW RATE
  • Full-Stroke Integral Piston - 117 lpm (31 gpm)
  • Full-Stroke TPE  - 109 lpm (29 gpm)
  • Full-Stroke PTFE - 117 lpm (31 gpm)
  • Rubber - 121 lpm (32 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4")
DISPLACEMENT PER STROKE *
    • Full-Stroke Integral Piston - 0.2 L (0.07 gal)
    • Full-Stroke TPE - 0.2 L (0.07 gal)
    • Full-Stroke PTFE - 0.22 L (0.06 gal)
    • Rubber - 0.2 L (0.07 gal)
* 1 cycle = 2 strokes
  • EPDM -51°C to 138°C (-60°F to 280°F)
  • PTFE* 4°C to 104°C (40°F to 220°F)
  • Saniflex™ -29°C to 104°C (-20°F to 220°F)
  • * 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
