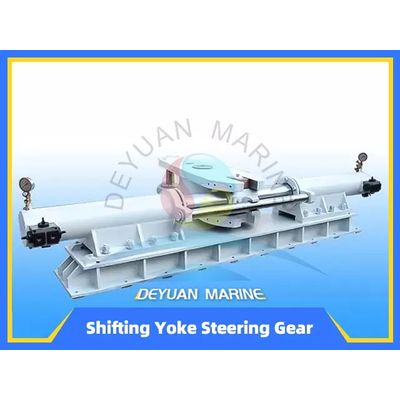

Deyuan Marine - Shifting Yoke Cylinder Fork Type Single Rudder Hydraulic Steering Gear

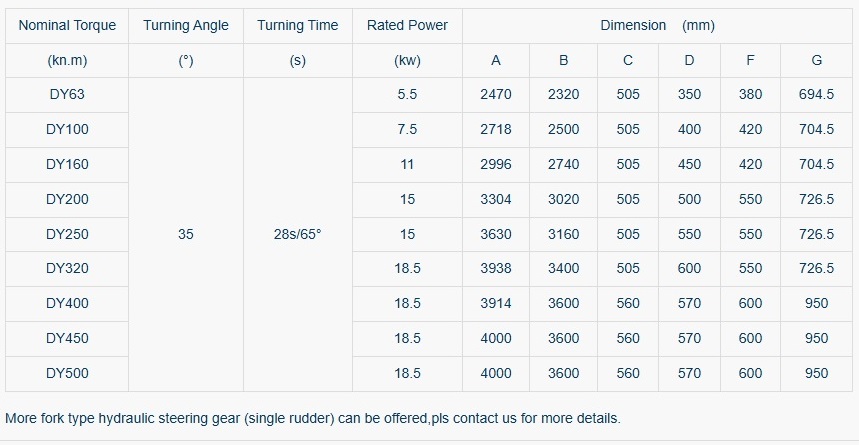

Cylinder fork type hydraulic steering gear is different from piston fork type steering gear, its characteristic is that it has changed the piston reciprocating movement into cylinder reciprocating movement. Two ends od piston rod are fixed on the foundation. so this kind of steering gear not only keep the traditional advantage of piston fork steering gear but also has the following advantages, small volume, light weight and convenient to maintenance. Cylinder fork type hydraulic steering gear can design to be single rudder or double rudder type, with torgue range from 15-250KN.M, we can also accept tailor-made as per customers specification.
