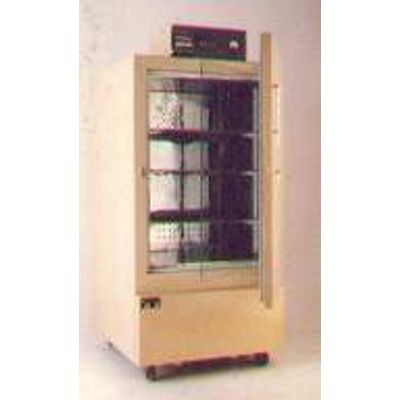

Shital - Model SSI-82 -B.O.D. Incubator

Construction : double walled construction , exterior mild steel dully treated and painted with duco paint. Interior of stainless steel insulated with glass wool or puff inner back triple walled. Blower , cooling coil , heaters are fitted on inner back with cover compressor and other cooling accessories are fitted at bottom on angle iron frame inner full view door and outer metal door with magnetic gasket. Control panel on top. Complete unit is mounted on caster wheels for easy movement.

Cooling/heating : hermetically sealed compressor with condenser and cooling coils provides temperature below ambient , and S.S. tubular sealed heaters above ambient. Forced air circulation is provided for temperature uniformity in working chamber.

Temp. Control : a fully solid state automatic electronic digital temperature controller with all controls and indication is provided on the top of the unit. Required temperature can be pre-set and unit will function automatically without any operator irrespective of atmospheric conditions. Temperature range to 5ºc to 50ºc. ±0.5ºc suitable for use on single phase 50 hz a.c. supply.

Illumination with fluorescent tube cyclic timer for day/night effect. Any other size and specification b.o.d. will be available on request.
