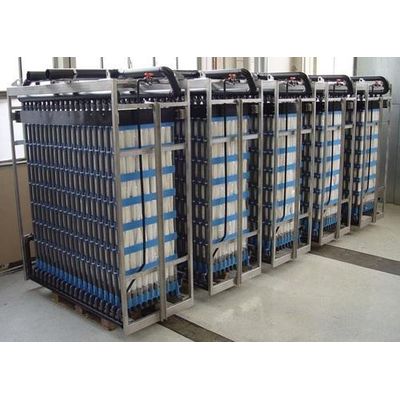

Shiva - Membrane Bioreactor Filtration Systems
Membrane Bioreactor Filtration Systemsthat we manufacture and supply are water treatment systems that integrate biological degradation of waste water, using membrane filtration technique. Set up of MBR plant incorporates a bioreactor and membrane filtration. One unit processes waste water treatment thereby replacing, and in some cases supplementing the solids separation function of secondary clarification and effluent filtration. This results in greater possibility of elimination of the secondary clarification and operation at higher MLSS concentration.
Most popular related searches
membrane filtration
membrane bioreactor
activated sludge treatment
wastewater treatment
process wastewater treatment
membrane bioreactor system
membrane filtration system
water treatment
filtration membrane
activated sludge
- Minimum Order Quantity: 1 Piece
- Water Source Type Industrial Wastewater
- Installation Service Yes
- Type Sewage Treatment, Effluent Treatment, Water Purification for Drinking, Waste Water Treatment
- Automatic Grade Manual, Semi-Automatic, Automatic
- Water Source Municipal Sewage, Industrial Effluent, River Water, Industrial Wastewater, Commercial Waste Water, Borewell Water
- Capacity Inlet Flow Rate (cubic meter/hour) 5000 m3/hour, 100 m3/hour, 1000 m3/hour, 10000 m3/hour, 2000 m3/hour, 500 m3/hour
- Capacity 5KLD-10 MLD
- Applicable Industry Pharmaceutical, Hospital, Chemical/Petroleum, Automobile, Slaughter House
- Automation Grade Fully Automatic, Manual, Semi-Automatic
Other details:
- MBR system is the combination of traditional Activated Sludge Treatment and membrane technology
- Design criteria of the system is based on the traditional way of Activated Sludge Treatment principle
- MBR modules are immersed and located in the air blow tank/aeration basin (biological reactor tank)
- The clear water is pumped (sucked) out from the MBR modules
- This eliminates the needs of secondary clarified
- Better control of biological activity
- Effluent that is free of bacteria and pathogens
- Smaller foot print
- Biodegradation efficiency enhanced 20%-40%
- Short Hydraulic Residence Time (HRT) & Long Sludge Residence Time (SRT)
- Activated sludge increase by 2-3 times
- Higher organic loading rates
- Convenient management with automatic control system
- Adopt high strength polypropylene material membrane, easy cleaning, long lifespan to 5-7 years
- Nos of pcs. of membrane are connected parallel through the header to form a frame. Connected frame network will form a Membrane Unit
- It is then connected the suction side of a permeate pump, the membranes are subjected to a slight negative pressure of 10 to 30 kPa (1.5 to 4.5 psi)
- In an outside-in process operation, water is drawn from the mixed through the membrane module and into the hollow fiber
