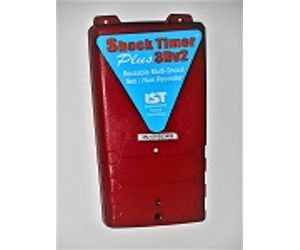

ShockTimer - Model Plus 3Dv2 -Low Cost Shock, Temp, Hum Logger

SHARE

ShockTimer-Plus 3Dv2, (STP3Dv2) is a new, low cost Shock Recorder for transportation monitoring. The device can be attached to your shipment or vehicle and will record the exact time it was abused in transport and even tell the level of shock it was subjected to.

Most popular related searches
shock and vibration
shock and vibration recorder
event recorder
DOT compliant
shock vibration recorder
vibration recording
liability claim
ammunition
containment pallet
ocean monitoring
  • 3-Axis g-Shock Logging, x, y, z
  • Temperature and Humidity Logging
  • +/- 16g Full Scale Measurement Range
  • Logs Date, Time & Peak-g levels of Shocks & Impacts
  • Selectable Trip Levels from 1.5g to 10g
  • Real Time Trigger Flash LED Once Tripped
  • 15,000 Event non-volatile memory
  • 3+ months  Battery Life, User Replaceable
  • Wireless Blue Tooth PC Communications
  • Date Imports to Excel
  • Simple to Setup, Install and Use
  • Small Size and Weight
  • Low Cost, Quantity Discounts

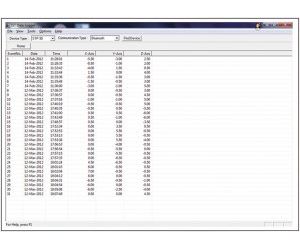

The New ShockTimer-Plus 3Dv2 is a low cost, low g, 3-axis shock recorder with time stamp. The device measures and logs whenever shocks occur that exceed the user selectable trip level and records the peak-g level & date/time of occurrence. The unit is re-settable and re-usable via wireless blue-tooth interface to a PC. A simple Windows software setup and analysis GUI package is available for purchase along with one or more units as well as a blue-tooth transceiver. Data from the STP-3Dv2 software GUI may be opened in MS Excel for review and analysis.

  • Simply
  • Inexpensively
  • Repeatedly
  • Reliably
  • Introducing the "Black Box" for the Cargo Handling Business
  • Actually Records cargo shipping and handling quality
  • Mitigates risk for physical damage claims
  • Provides data for identifying liable party for physical damage
  • Quantifies concealed damage risk
  • Insurance Claims liability subrogation
  • Carrier Handling Quality Evaluation and Comparison
  • Shipment Monitoring
  • Pallets, Ocean Containers, ISO Containers, Crates
  • Rail Cars
  • Lift Truck/Fork Truck Driver Surveys
  • Fleet Monitoring
  • Vehicular Ride Quality Surveys
  • Transformers, Large Machines, Fuel Cells, Semiconductor Fab Machines, Medical Imaging Equipment
  • Aircraft Turbulence, Hard Landings
  • Ordnance & Munitions

  • Trip Threshold: User selectable from 1.5g to 10g
  • Full Scale Range: +/-16g
  • Measurement resolution: 0.04g
  • Trip Accuracy: 5%
  • Memory Capacity:
    • 15,000 shock readings
    • 30,000 temp/hum readings
  • Memory Type: Non-volatile flash
  • Tem/Hum Logging: user selectable from 1 to 12 hours
  • Active Indicator: real time 6-second LED active flash
  • Trip Indicator: real time 3-second red/green flash once tripped
  • Frequency Response: DC to 40 Hz
  • Time Resolution: 10 msec
  • Data Communications: wireless blue tooth
  • Switches:
    • REC/COM
    • ON/OFF
  • Temperature Range: -40 to +160 deg F
  • Operational Battery Life: 3+ months
  • Size: 4.9" x 2.9" x 0.9" mechanical drawings on request
  • Weight: 5.6 oz
  • Enclosure: Injection molded plastic
  • Batteries: Four lithium AA cells, DOT compliant
  • Mounting: Three in-built mounting holes
  • Options:
    • Mag-Mount-STP Magnetic Mounting base
    • Blue-Tooth-STP Wireless USB for PC
    • STP-Windows-GUI Windows Software and GUI
