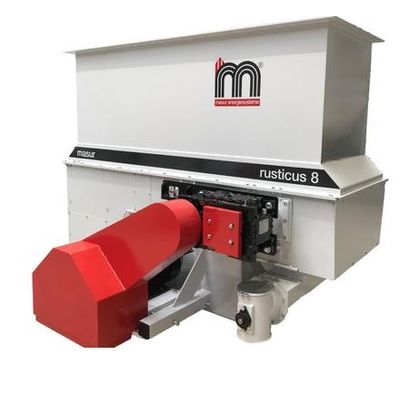

Masur - Model R-series -Shredder for Wood, Plastic and Paper
The MASUR compact chippers are machines with a slow running rotor and quiet in operation. They are of robust construction and have a large feed hopper. The machines have drive motors with sizes ranging from 22 to 45 kW and a star-delta start routine.
The material is forced onto the cutter rotor by means of a hydraulic ram. The pressure of the feed ram is regulated via a pressure sensor system, allowing for fully automatic chipping.The MASUR Rusticus machines have a two speed hydraulic, a Siemens PLC with a text display and optimized cutting geometry as standard features. The electric control system is built according to valid national guidelines. The fact that the four models are available with only one drive size each enable us to offer low lead times (a few weeks) and highly competitive prices for a standard machine.Of course we will realize all customer related features that are required to your complete satisfaction. Those features may be related to infeed or outfeed requirements or any other issue that might be important to you.
- Rotor speed: rpm ca. 100
- Hopper volume: m³ 1,6 to 4
- Weight: t 3,5 to 5,5
- Drive motor: kW 22 to 45
- Hydraulic: kW 2,2 to 4,4
- Granulate size: mm 10 - 50
- Screen: mm 12 x 12 to 50 x 50
- Rotor diameter: mm 370
- Rotor width: mm 900 bis 1600
- Noise level: dB(A) <85*
