Shrink Systems
FromAtilim Makina
Ensures labeling of the checked cylinders after filling, consists of manual shrink head or automatic shrink machine and vapour generator. Vapour obtained by the vapour generator outside the filling building are delivered with the pipes into the automatic shrink machine and cylinders proceeding on the conveyor are shrinked here.
Most popular related searches
hydrostatic test
hydrostatic testing
level indicator
feed water
vapor control
manual valve
tank wash
tank washing
level controller
- Automatic Shrink Machine
- Electric Operated Vapour generator

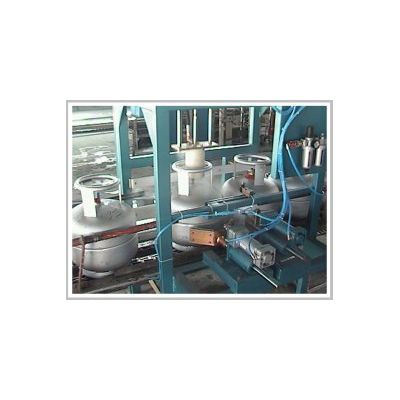

Automatic Shrink Machine
- System operates with air and is fully automatic.
- Is designed for household cylinders with vane and valve
- Manual shrink head piece is used for industrial cylinders.
Electric Vapour Generator
- Generates vapour with maximum 3 bar pressure.
- 90 lt water volume.
- Vapour is obtained by 2 pieces of 3 kw and 2 pieces of 4,5 kw resistances with total power of 15 kw.
- Water level is checked automatically by fluid level relay.
- Vapour pressure control is maintained by a pressurestat.
- Thermostat breaks off the circuit for safety purposes when temperature exceeds normal values.
- Generator is protected by two valves set at 4 bars.
- System is hydrostatic tested under 5 Bar pressure.
- Body metal sheet thickness is 5 mms.
- Immersion galvanized.
- Feeding pump power is 0,37 kw.
- Feeding pump max. pressure is 4 bars.
- Water level can be observed through through the glass of level indicator on the side.
- Lime is separated from the feed water passing through back washing resin tank. Lime free water increases generator life.
