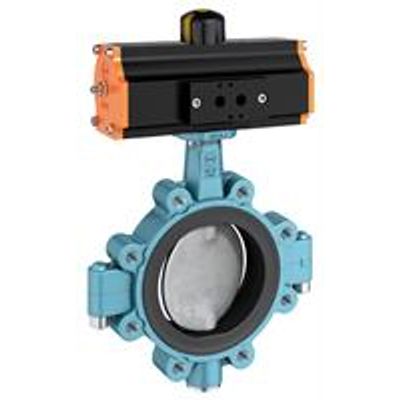

EBRO ARMATUREN - Shut-off and control valve type Z 614-A
Thanks to their design and material diversity, centrally mounted, resilient seated shut-off and control valves are almost universally usable. Whether the medium is water, powder or gas - with a broad range of materials, we can offer you the optimal solution for your application.Most popular related searches
Nominal diameter: DN 50 - DN 300
Face-to-face: EN 558 series 20, ISO 5752 series 20, API 609 table 1
Flange connection: EN 1092 PN 10/16, ASME class 150
Flange surface design: EN 1092 form A /B, ASME RF / FF
Top flange: EN ISO 5211
Marking: EN 19
Tightness check: EN 12266 (leakage rate A), ISO 5208 category 3
Working standard: EN 593
Temperature range: -10 °C to + 200 °C (depending on pressure, medium and material)
Max. operating pressure: max. 10 bar
CE marking number: 0036
TUEV number: 9001:2008
