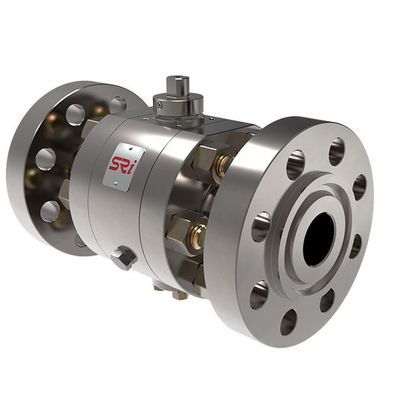

SRI - Model API 6D/6A -Side Entry Trunnion Ball Valve
The side-entry ball valve is the most common and popular design. Given its great modularity, SRi can manufacture any side-entry ball valves with special options. In case of maintenance operation, all parts of the valve can be replaced, so valve lifetime is extended.
Most popular related searches
Range
- ND 1/2" (DN15) to ND 36" (DN900)
Classes
- ASME CLASS 150 to 2500
DIN-PN PN 10 to 64
API 3000 to 10000
Material
- Carbon & low alloy Steels
Stainless steels
Duplex & Super Duplex
Nickel Alloys
Titanium
Design features
- API 6D/6A design & construction
- API 6D & ASME B1610 face to face
- Antistatic device
- Double block and bleed (DBB)
- Drain plug
- Connection ends upon request
- Firesafe design
- O-ring seals
- Self-Relieving seat
- Soft seat insert
- Trunnion mounted
- Lifting lugs /valve support
- Vent plug
On request
- Full/reduced/customize bore
Manual or actuated operation
Optional Design features
- Automatic bleeding system
- By-pass system
- Double Piston Effect (DPE)
- Double Isolation & Bleed (DIB)
- ENP on seat/ball/stem/body
- Extended stem
- Heating jacket
- Locking device
- Metal to metal seats
- Overlay on seat pocket
- Overlay on dynamic seal pockets
- Overlay on all wetted parts
- Polymeric lip-seals
- Single Piston Effect
- Stem injection fitting
- Seat injection fitting
- Transition pups pieces BW ends
