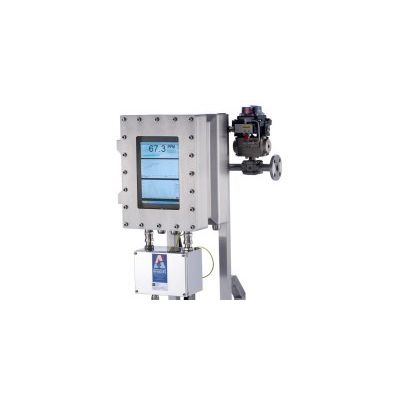

Advanced Sensors - Model EX-100/1000 -Side Stream Oil in Water Analyzer
The EX-100/1000 is a side stream Oil in Water analyzer that uses fluorescence to provide continuous accurate measurements of oil concentrations in water. Reliable real-time data enables operators to take accurate discharge measurements and to improve efficiency of separation processes enabling cost reductions. In addition to the EX-100 features, the EX-1000 model offers spectral analysis.
Most popular related searches
oil-in-water
oil-in-water analyzer
water analyzer
oil-in-water monitoring
laser induced fluorescence
continuous oil-in-water monitoring
spectral analysis
hazardous area
sample conditioning
ultrasonic cleaning
- Patented ultrasonic cleaning
- Laser Induced Fluorescence (LIF)
- Periodic homogenisation of sample
- Sample point
- Configurable measurement ranges (0-10 ppm, 0-100 ppm […] up to 0-20,000 ppm)
- Measurement repeatability ±1% of full scale
- Remote management and diagnostics
- Easy to install (no sample conditioning required)
- Multiple communications options – 4-20 mA, HART, Modbus, Extended Ethernet
- Optional integrated spectrometer
- Operates using Microsoft Windows 7
- Auto tuning functionality
- Viewing window of sample chamber
- Digital input & output
- Robust and reliable
- Easy to use
- Low Cost Of Ownership (COO) with no routine maintenance required
- No degradation of signal or recalibration required
- Side stream format offers localized sample control
- Droplet size compensation with homogenized samples
- Sample point facilitates laboratory correlation
- Remote control and monitoring (suitable for un-manned locations and remote process monitoring)
- Instantaneous measurements
The EX-100/1000 uses the following technologies
Ultrasonics
Ensuring no routine maintenance of our Oil in Water analyzers.
Fluorescence
Providing unrivalled accuracy and reliability of Oil in Water concentration
Spectroscopy
Using spectral analysis to detect changes in water composition.
