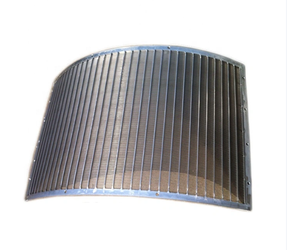

FY-XL - Model 026 Wedge Wire -Sieve Bend in Cassava Processing
Sieve Bend in Cassava Processing Cassava is a staple food for nearly 800 million people, and grows in tropical and subtropical areas of the world. The rising demand in Asia for dried cassava in animal feed and industrial applications further drives the increase in cassava production. Feiya group branch factory-Xinlu has been supplying sieve bends for the cassava processing industry for a number of years. We have the needed expertise to produce different sieve bend screens according to the size, arc degree, and slot openings customers require. A high open area allows for more water to seep through the slot openings, while still retaining the cassava fibers on the surface. Made from either stainless steel or galvanized carbon steel, each static sieve screen has a slot opening between 0.1mm and 15mm. Feel free to speak to us today about your specific requirements.

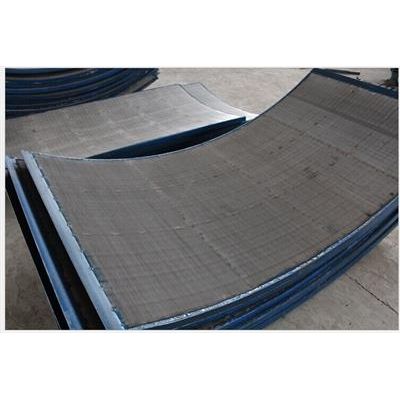

There are multiple names for the sieve bend, including the DSM screen and static sieve screen. No matter what a customer calls it, a sieve bend is a practical solid / liquid separation unit.
Rigid wedge wires form the bowed surface, over which feed slurries trickle down. During this process, a layer of liquid is sliced off with fine particles, passing through the slots between wedge wires.
Sieve bend screens are ideal for sizing and water removal applications. As they are widely used in treatment plants for paper and pulp, breweries, and food processing. In addition to wedge wires, customers can also choose other wire profiles (such as profile wires or shaped wires ) including round, square, and flat steel bars. Wedge wires are welded to their support rods at each point of contact for strength and corrosion resistance. Evenly distributed slots ensure a high water removal and classification efficiency.
Feiya group branch factory-Xinlu can supply DSM screen in different materials, including stainless steel in grades 321, 304, 304L. 316 and 316L. Stainless steel as well as galvanized carbon steel
Main specifications of the DSM Screen
Slot opening size: 0.1mm – 15mm
Size: as per customer requirements
