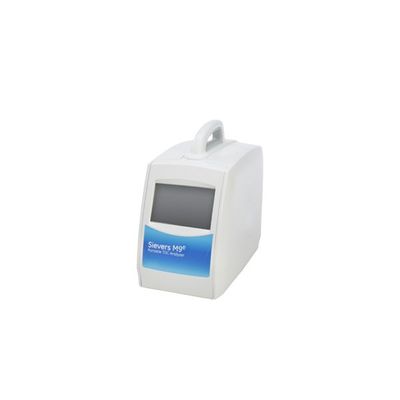

SUEZ - Model M9 -Sievers Portable TOC Analyzer
The lightweight, compact design of the Sievers M9 Portable Analyzer gives you the option for TOC analysis at various locations- at-line, online, or in the lab. It offers the same accuracy and compliance as the lab model, but it can be installed online for continuous measurement or carried to any location in the water system for troubleshooting. The M9 Portable has options for simultaneous Stage 1 conductivity testing and for four-second analysis with Turbo mode for fast response applications. For the pharmaceutical industry, Sievers Validation Support Packages (VSPs) help you navigate the M9 validation process and enable a more efficient instrument implementation. The new Sievers VSP for software is written specifically to address Data Integrity and 21 CFR Part 11 by validating Sievers DataPro2 software.
The Sievers M9 Portable is engineered for ease-of-use and cost-effective operation across various applications and sampling methods. Using the time-tested Sievers Membrane Conductometric technology, it supports compliance with pharmacopeia water testing or can be used for at-line cleaning validation and online applications.
Sievers M9 Analyzers meet or exceed the most common pharmaceutical regulatory requirements for TOC analysis and data integrity.
- Two-minute sample analysis time
- Can be used for online monitoring, grab samples, or in the lab with the Sievers Autosampler
- Lightweight, IP-21 rated, compact design for at-line applications
- Automated operations, such as calibration, verification, and data analysis
- Autoreagent feature automatically establishes optimal flow rates for each sample
- Well suited for a variety of sample matrices and concentrations
- Minimal preventive maintenance (typically just a few hours per year)
- 12-month calibration stability
- Optional Stage 1 conductivity capability for simultaneous testing of TOC and conductivity
- Optional Turbo mode for four-second analysis
Operating Specifications*
- Range 0.03 ppb to 50 ppm
- Precision < 1% RSD
- Accuracy ± 2% or ± 0.5 ppb, whichever is greater
- Display Readout 3 significant digits
- Sample Type On-line continuous, Autosampler or discrete grab sample
- Calibration Typically stable for 12 months
- Analysis Time 2 minutes (4 seconds with the optional Turbo mode)
- Sample Temperature** 5–95 °C (41–203 °F)
- Ambient Temperature 5–40 °C (41–104 °F)
- Sample Pressure 100 psig
- On-Line Flow Rate >50 mL/min (for on-line mode)
- Instrument Sample Flow Rate: 0.5 mL/min
Analyzer Specifications
- Outputs 4-20 mA outputs (3); alarm outputs (4); binary input (1); USB device port (1); USB host ports (2); Modbus TCP/IP
- Display 7" WVGA 800X480 pixel, Color LCD with touch-screen
- Power 100 - 240 V~, 50 -60 Hz, 100 VA
- Fuses Replace with same type and size fuse: T 1.6 A 250 VAC Fuse (Slow Blow), size 5 X 20 mm appliance inlet
- Dimensions H: 39.5 cm (15.4 in); W: 22.9 cm (9.0 in); D: 46.4 cm (18.3 in)
- Weight 9.4 kg (20.8 lb)
- Enclosure Rating IP-21
- Safety Certifications ETL, CE (see Declaration of Conformity)
Sample Conductivity (Optional)
- Raw Conductivity Range 0.01 to 2,000 μS/cm
- Conductivity Accuracy ±0.005 μS/cm or ±1%.whichever is greater
- Pollution Degree: less than 0.25% RSD
Environment
- Maximum Relative Humidity 0 - 95%, non-condensing
- Maximum Altitude 3,000 m (9.800 ft)
- Pollution Degree 2
Operating Specifications*
- Range 0.20 ppb to 10 ppm
- Precision 2% RSD
- Accuracy ±10% or ±10 ppb whichever is greater
- Display Readout 3 significant digits
- Sample Type On-line, Grab, Autosampler
- Calibration Typically stable for 12 months
- Analysis Time 4 seconds
- Response Time 3.25 minutes
- Sample Temperature 5–95 °C (41–203 °F)
- Ambient Temperature 10–40 °C (50–104 °F)
- Sample Pressure** 100 psi
- Sample Flow Rate 30–300 mL/min (for on-line mode)
- Instrument Sample
- Flow Rate 1.1 mL/min
Analyzer Specifications
- Outputs 4-20 mA outputs (3); alarm outputs (4); binary input (1); USB device port (1), USB host ports (2); Ethernet (1)
- Display 7” WVGA 800x480 pixel, Color LCD w/touch-screen
- Power Universal Power Supply: 100–240 ± 10% VAC, 50 W, 50/60 Hz
- Dimensions H: 39.5 cm (15.4); W: 22.9 cm (9.0 in); D: 46.4 cm (18.3 in)
- Weight 9.4 kg (20.8 lbs)
- Safety Certifications ETL, CE
Consumables
- UV Lamp 6 months
- Acid Reagent As needed, typically 6 months
- Oxidizer Reagent As needed, typically 3-month stability
- Sievers Autosampler: 63 or 120 sample-position capacity
- DataPro2 Software: Custom sample protocols; automated calibration and validation protocols
- DataGuard Software: Full compliance support for 21 CFR Part 11 and Annex 11
- Inorganic Carbon Remover (ICR): Improves TOC accuracy for samples with high inorganic carbon levels
- Sample Conductivity: Measure and report sample conductivity
- Turbo Mode: Provides four-second analysis time
