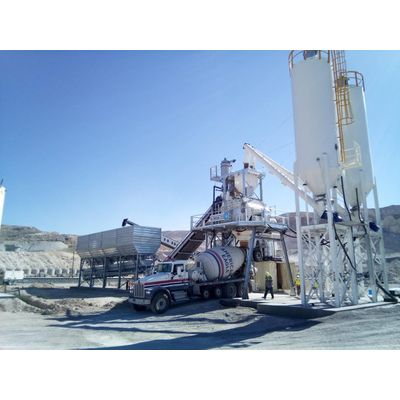

Simem - Model Eagle -Semi Mobile Batching Plant for Road Construction
All Eagle plants are pre-wired and pre-plumbed and they can be moved from site to site with standard trucks or stored into containers. All components will either fit on a truck or a shipping container for easy transportation.
Our Rhyno mixer features two planetary type gearboxes connected to electric motors with belt drives. In addition, there is a mechanical synchronization of the two mixing shafts and labyrinth type shaft seals, with electric driven grease injection by an for continuous lubrication. As in all Simem equipment, top range materials are emplyed, Ni Hard cast iron, 600 Brinell hardness and GS500 cast iron.
The aggregate module is made with a modular concept and can therefore be made expandable by adding additional modules as a priority to expand the number of hoppers available and therefore the types of aggregates.
Regarding the storage capacity of aggregates, you can switch easily from the basic con?guration of 80 cubic meters to the con?guration of 180 cubic meters.
Simem@tic is an easy to use automation with unbeatable accuracy and flexibility for uninterrupted operation.
- Familiar Windows operating environment with SQL database
- Flexible reporting and backup functionality
- Real time flow correction for each material
- PC/PLC based
