Singer Valve - Model 39 -Non-Modulating Float Pilot with Vertical Rod
The 39 non-modulating float pilot is designed to operate an On-Off float valve. The differential between the level where the valve opens and the level where the valve closes, is adjustable. The standard configuration is for the pilot valve to close on high level and open at a low level. The 39 pilot is used as the standard pilot on all non-modulating F-Type 5, 106 and 206 series float valves.
The pilot shall be a Singer model 39.
- The pilot shall be non-modulating and made of brass and stainless steel construction.
- The pilot shall include a 4 ft / 1.2 m brass float rod with adjustable stops and a copper float. (alternate lengths of float rod are available)
- The pilot will close the main valve on rising water level.
- Maximum working temperature: 180° F / 82° C
- Maximum working pressure: 80 psi / 5.5 bar

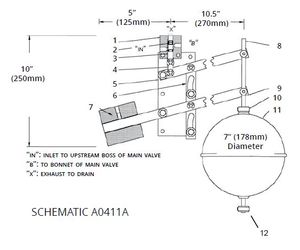

1. Body (Brass)
2. Inner Valve O-rings (Buna-N)
3. Inner Valve (Brass)
4. Connector Bar
5. Mounting Bracket (Brass)
6. Guide Bar (Brass)
7. Counter Weight (Cast Iron - Epoxy Coating)
8. Float Rod (Brass)
9. Lever Arm (Brass)
10. Adjustable Stop (Brass)
11. Float (Copper)
12. Adjustable Stop Opening (Brass)
Options: Available in Stainless Steel construction.
