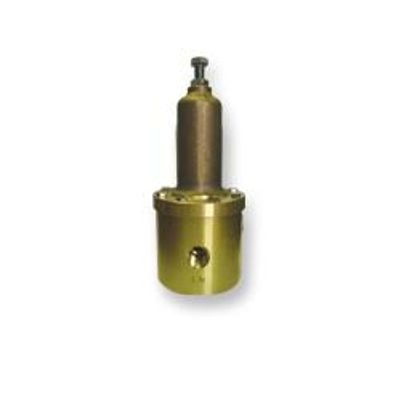

Singer Valve - Model 82-PR -Pressure Reducing Pilot
The model 82-PR is a spring and diaphragm operated, normally open pilot valve, with the sensing chamber(s) separated from the operating chambers. It closes when the control pressure below the diaphragm exceeds the force of the spring. The model 82-PR is used as the standard low pressure pilot on model RPS-L&H anticipating surge valves.
Most popular related searches
- Maximum Working Temperature: 180° F / 82° C
- Maximum Working Pressure: 400 psi / 27 bar
- Spring Ranges: Standard: 20 to 80 psi / 1.4 to 5.5 bar
- Optional: 7 to 25 psi / 0.48 to 1.7 bar, 45 to 200 psi / 3.1 to 13.8 bar, 100 to 350 psi / 6.9 to 24.1 bar, 200 to 500 psi / 13.8 to 34.5 bar
