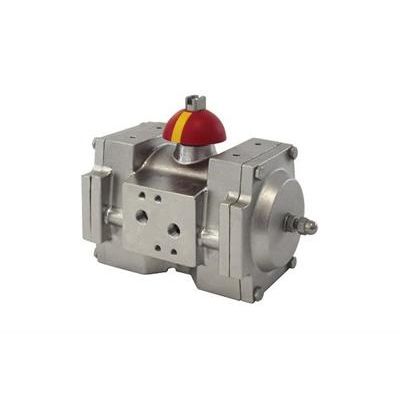

Rotork - Model GTS -Single and Double Acting Pneumatic Piston Actuators

Action

• Standard 90°

Stroke adjustment

• -5° to +5° from 90° position
• Double end stop options

Torques

• 2.4 to 1,190 Nm (10,170 lbf.in)

Air pressure

• 2 to 10 bar

Supply

• Filtered air PNEUROP/ISO class 4, other fluids on request

Materials

• Body and end caps in electro-polished stainless steel 316L
• Pistons in die cast aluminium – optional in stainless steel 316L
• Pinion in stainless steel 316L

Approvals and Industry Standards

• Certified to ATEX 2014/34/EU
