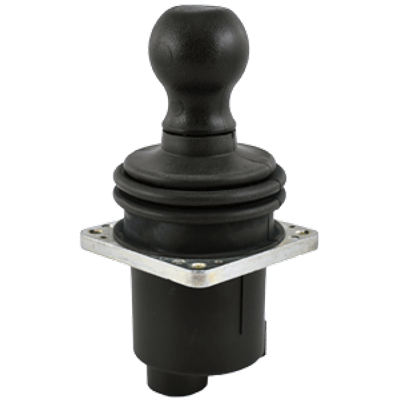

Scorpion Technologies - Model JS-01 -Single Axis Analog Joystick with Hall Effect Sensors

The JS-01 is a single axis, spring-return to center joystick designed for precision control applications requiring durable performance. This full-size joystick incorporates non-contacting Hall effect sensors, ensuring an operational lifespan exceeding 4 million cycles. The standard analog output ranges from 0.5V to 2.5V (center) to 4.5V DC, suitable for a variety of industrial and commercial control systems. The joystick features an IP65 rating above the panel, offering protection against dust and water ingress. For enhanced connectivity and usability, it includes a 6-pin Deutsch connector. High current switched outputs and CAN (CanOpen or J1939) communications options are available to meet specific application needs. The JS-01 is equipped with a plain knob by default, but can be customized with any of the available S, X, P, or L grips, providing adaptability for different ergonomic requirements. Integrated control electronics can also be incorporated based on project requirements.
