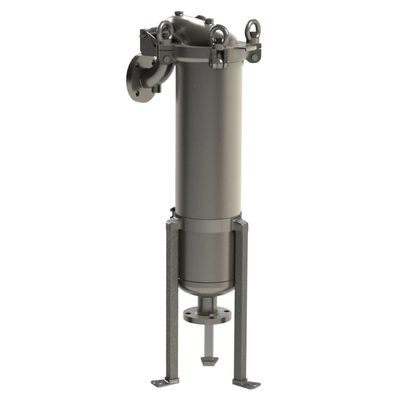

AMBF - Model SBB -Single Bag Bolted Cover
Robust Design and High Quality Construction for Industrial and Commercial Applications. Single Bag Housings, Bolted Cover, #1, #2, #3, #4 & #12 Industry Sizes. Concave evacuation style cover prevents spills during bag changes. Stainless adjustable legs. Standard Buna-N Seals.
Most popular related searches
bag filter housing
filter housing
filter bag
filter bag housing
bag filter
bag housing
baghouse filter
process fluid
desalination filter
drain vent
- Carbon Steel, 304SS or 316SS
- Eye-Nut/Swing Bolt Closure (4-Bolt #1, #2 & #12 / 3-Bolt #3 & #4) for high pressure operation safety
- 150psi max. working pressure / Hydro-tested @ 225psi
- 316SS Restrainer Basket w/ 9/64” perforations
- Differential/Drain/Vent Connections
- 316SS Spring style bag compressor for positive sealing
- Finish: 2-Part Epoxy on Carbon Steel /Passivation & Glass Bead on 304SS & 316SS
- Commercial / Retail Distribution
- Custom/OEM Application
- Desalination
- Filter Housings
- Food and Beverage
- Industrial
- Municipalities
- Paints and Inks
- Water (Fresh/Sea/R.O./D.I/Waste)
- Oils
- Chemicals
- Coolants
- Food & Beverage
- Paints & Coatings
- Soaps & Detergents
- Pulp & Paper
- NPT / ANSI 150# Flanges / Sanitary Connections
- Side In, Side Out / Side in, Bottom Out / Custom
- Seal materials (Viton, EPDM, Encaps. Teflon, Silicone)
- Electropolish Finish
- ASME Code Stamp
- Mesh Lined Basket
- Custom OEM designs
